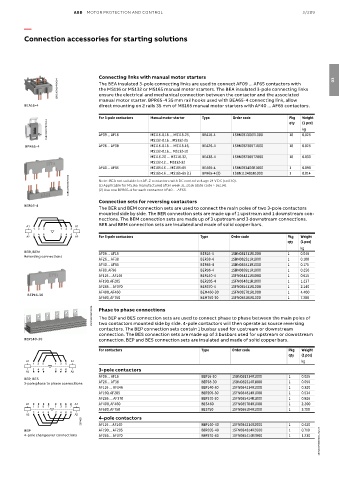

Page 363 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 3/289

—

Connection accessories for starting solutions

Connecting links with manual motor starters 03
1SBC100014V0014 The BEA insulated 3-pole connecting links are used to connect AF09 ... AF65 contactors with
the MS116 or MS132 or MS165 manual motor starters. The BEA insulated 3-pole connecting links
ensure the electrical and mechanical connection between the contactor and the associated
manual motor starter. BPR65-4 35 mm rail hooks used with BEA65-4 connecting link, allow
BEA16-4 direct mounting on 2 rails 35 mm of MS165 manual motor starters with AF40 ... AF65 contactors.
For 3-pole contactors Manual motor starter Type Order code Pkg Weight
1SBC100078V0014 AF09 ... AF16 MS116-0.16 … MS116-25, BEA16-4 1SBN081306T1000 10 kg
(1 pce)
qty
0.025
MS116-0.16 … MS116-16,
BPR65-4 AF26 ... AF38 MS132-0.16… MS132-25 BEA26-4 1SBN082306T1000 10 0.025
MS132-0.16 ... MS132-10
MS116-20 … MS116-32, BEA38-4 1SBN082306T2000 10 0.030
MS132-12 ... MS132-32
AF40 ... AF65 MS165-16 … MS165-65 BEA65-4 1SBN083406R1000 1 0.090
MS165-16 … MS165-65 (1) BPR65-4 (2) 1SBN113405R1000 1 0.014
1SBC100016V0014 Note : BEA not suitable for AF..Z contactors with DC control voltage 24 V DC (coil 30).
(1) Applicable for MS165 manufactured after week 31, 2016 (date code > 16214).
(2) Use one BPR65-4 for each contactor AF40 … AF65.

Connection sets for reversing contactors
BER16-4
The BER and BEM connection sets are used to connect the main poles of two 3-pole contactors
mounted side by side. The BER connection sets are made up of 1 upstream and 1 downstream con-
nections. The BEM connection sets are made up of 3 upstream and 3 downstream connections.
BER and BEM connection sets are insulated and made of solid copper bars.
A1 A1
1 3 5 1 3 5
2 4 6 2 4 6
A2 A2 For 3-pole contactors Type Order code Pkg Weight
qty (1 pce)
kg
BER, BEM AF09 ... AF16 BER16-4 1SBN081311R1000 1 0.045
Reversing connections
AF26 ... AF38 BER38-4 1SBN082311R1000 1 0.100
AF40 ... AF65 BER65-4 1SBN083411R1000 1 0.175
AF80, AF96 BER96-4 1SBN083911R1000 1 0.250
AF116 ... AF146 BER140-4 1SFN084211R1000 1 0.615
AF190, AF205 BER205-4 1SFN084811R1000 1 1.237
AF265 ... AF370 BER370-4 1SFN085411R1000 1 2.140
AF400, AF460 BEM460-30 1SFN085701R1000 1 4.400
BEP16-30
AF580, AF750 BEM750-30 1SFN086101R1000 1 7.300
1SFC101052V0001 Phase to phase connections
The BEP and BES connection sets are used to connect phase to phase between the main poles of
two contactors mounted side by side. 4-pole contactors will then operate as source reversing
contactors. The BEP connection sets contain 1 busbar used for upstream or downstream
connection. The BES connection sets are made up of 3 busbars used for upstream or downstream
BEP140-30 connection. BEP and BES connection sets are insulated and made of solid copper bars.
For contactors Type Order code Pkg Weight
qty (1 pce)
A1 A1 kg
1 3 5 1 3 5
2 4 6 2 4 6 3-pole contactors
A2 A2
AF09 ... AF16 BEP16-30 1SBN081314R1000 1 0.025
BEP, BES
3-pole phase to phase connections AF26 ... AF38 BEP38-30 1SBN082314R1000 1 0.050
AF116 … AF146 BEP140-30 1SFN084214R1000 1 0.320
AF190, AF205 BEP205-30 1SFN084814R1000 1 0.534
AF265 … AF370 BEP370-30 1SFN085414R1000 1 0.926
A1 A1 AF400, AF460 BES460 1SFN085704R1000 1 2.200
1 3 5 7 1 3 5 7
AF580, AF750 BES750 1SFN086104R1000 1 3.700
2 4 6 8 2 4 6 8
A2 A2 4-pole contactors
E0743D AF116 ... AF140 BEP140-40 1SFN084214R2000 1 0.420
1SBC101736S0201 - Rev. E
BEP AF190 ... AF205 BEP205-40 1SFN084814R2000 1 0.710
4-pole changeover connections AF265 ... AF370 BEP370-40 1SFN085414R2000 1 1.230
