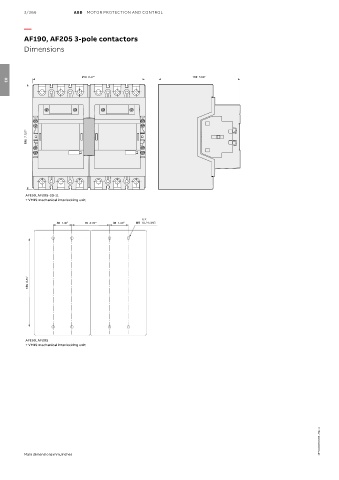

AF190, AF205 3-pole contactors
Dimensions

210 8.27" 152 5.98"
03

196 7.727"

AF190, AF205-30-11
+ VM19 mechanical interlocking unit

6 X
35 1.38" 70 2.76" 35 1.38" M5 10-24 UNC

165 6.50"

AF190, AF205
+ VM19 mechanical interlocking unit

1SFC101119C0201 - Rev. A

Main dimensions mm, inches
