Page 442 - Motor protection and control Manual motor starters, contactors and overload relays

3/368 ABB MOTOR PROTECTION AND CONTROL

—

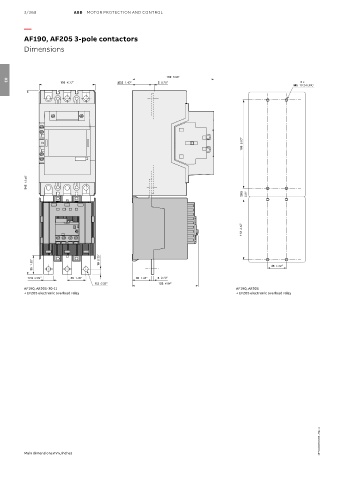

AF190, AF205 3-pole contactors
Dimensions

152 5.98"
105 4.13" 35.5 1.40" 5 0.20" 8 x
03
M5 10-24 UNC

165 6.50"

342 13.46"

20.5 0.81"

112 4.42"

35 1.38" 10 0.39" 35 1.39"

17.5 0.69" 35 1.38" 35 1.38" 5 0.20"
8.5 0.33" 123 4.84"
AF190, AF205-30-11 AF190, AF205
+ EF205 electronic overload relay + EF205 electronic overload relay

1SFC101119C0201 - Rev. A

Main dimensions mm, inches
