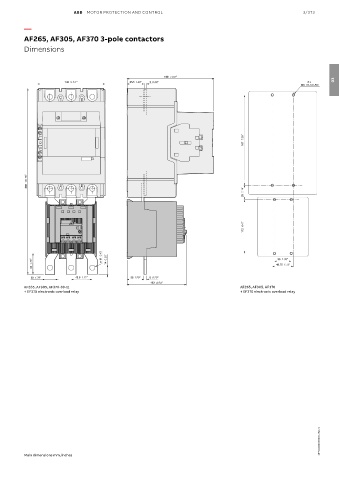

AF265, AF305, AF370 3-pole contactors
Dimensions

180 7.09"
140 5.51" 35.5 1.40" 5 0.20" 8 x 03
M5 10-24 UNC

187 7.36"

385 15.16"

29 1.14"

112 4.41"

ø 11 0.43" 14 0.55" 35 1.38"
44 1.73" 43.75 1.72"

20 1.79" 43.8 1.72" 35 1.20" 5 0.20"
123 4.84"
AF265, AF305, AF370-30-11 AF265, AF305, AF370
+ EF370 electronic overload relay + EF370 electronic overload relay

1SFC101120C0201 - Rev. C

Main dimensions mm, inches
