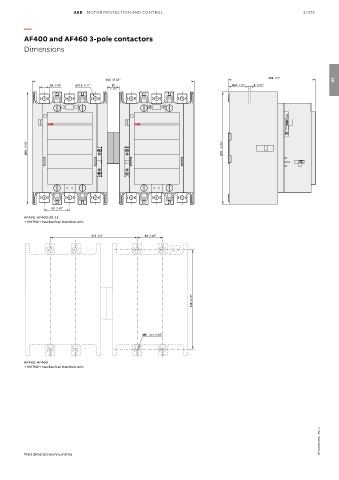

AF400 and AF460 3-pole contactors
Dimensions

216 8.5"
402 15.83" 03
25 0.98" ø10.5 0.41" 30 48.5 1.91" 6 0.24"
1.18"

268 10.55" 278 10.94"

63 2.48"
AF400, AF460-30-11
+ VM750H mechanical interlock unit

216 8.5" 63 2.48"

248 9.76"

M5 10-24 UNC

AF400, AF460
+ VM750H mechanical interlock unit

1SFC101121C0201 - Rev. A

Main dimensions mm, inches
