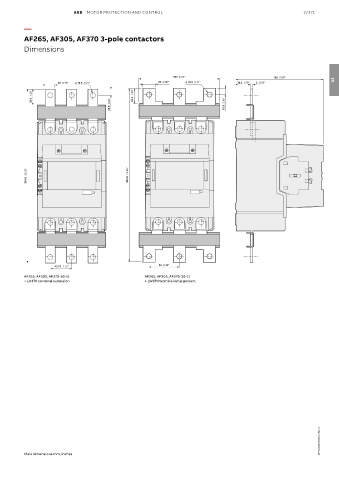

AF265, AF305, AF370 3-pole contactors
Dimensions

165 6.50" 180 7.09" 180 7.09" 180 7.09"
ø 10.5 0.41"
5 0.20"
20 0.79" ø 10.5 0.41" 20 0.79" 30.5 1.20" ø 10.5 0.41" 30.5 1.20" 30.5 1.20" 5 0.20" 03
25 0.98" 5 0.20"
32.0 1.28" 32.0 1.28" 31.2 1.23"
12.5 0.49" 12.5 0.49" 12.5 0.49"

354.5 20.02" 354.5 20.02" 354.5 13.96"

43.75 1.72" 43.75 1.72" 62 2.44"
AF265, AF305, AF370-30-11 AF265, AF305, AF370-30-11
+ LX370 terminal extension + LW370 terminal enlargement

1SFC101120C0201 - Rev. C

Main dimensions mm, inches
