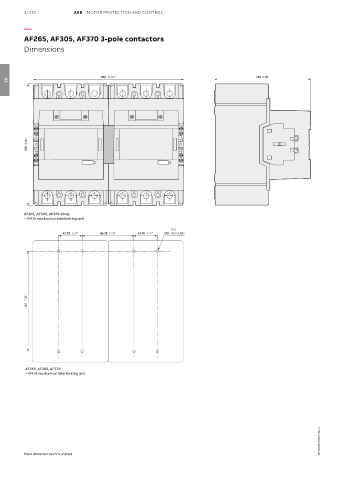

3/372 ABB MOTOR PROTECTION AND CONTROL

—

AF265, AF305, AF370 3-pole contactors
Dimensions

280 11.02" 180 7.09"
03

225 8.86"

AF265, AF305, AF370-30-11
+ VM19 mechanical interlocking unit
8 X
43.75 1.72" 96.25 3.79" 43.75 1.72" M5 10-24 UNC

187 7.36"

AF265, AF305, AF370
+ VM19 mechanical interlocking unit

1SFC101120C0201 - Rev. C

Main dimensions mm, inches
