4/38             ABB  MOTOR PROTECTION AND CONTROL

          —

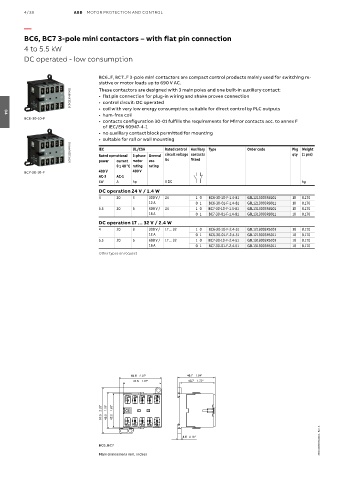

          BC6, BC7 3-pole mini contactors – with flat pin connection

          4 to 5.5 kW
          DC operated - low consumption


                                    BC6..F, BC7..F 3-pole mini contactors are compact control products mainly used for switching re-
                                    sistive or motor loads up to 690 V AC.
                                    These contactors are designed with 3 main poles and one built-in auxiliary contact:
                              2CDC211041F0011  •  flat pin connection for plug-in wiring and shake proven connection
                                    •  control circuit: DC operated
                                    •  coil with very low energy consumption; suitable for direct control by PLC outputs
                                    •  hum-free coil
   04
          BC6-30-10-F
                                    •  contacts configuration 30-01 fulfills the requirements for Mirror contacts acc. to annex F
                                     of IEC/EN 60947-4-1
                                    •  no auxiliary contact block permitted for mounting
                                    •  suitable for rail or wall mounting
                             2CDC211024F0011  IEC  UL/CSA  Rated control  Auxiliary Type   Order code   Pkg  Weight
                                                                                                        qty
                                                                                                           (1 pce)
                                                           circuit voltage contacts
                                                3-phase  General
                                    Rated operational
                                                           Uc
                                                                    fitted
                                          current
                                    power
                                                     rating
                                                rating
                                          θ ≤ 40 °C   motor   use
          BC7-30-10-F               400 V       480 V
                                    AC-3  AC-1
                                    kW    A     hp         V DC                                            kg
                                    DC operation 24 V / 1.4 W
                                    4     20    3    300 V /   24     1 0  BC6-30-10-F-1.4-81  GJL1213003R8101  10  0.170
                                                     12 A             0 1  BC6-30-01-F-1.4-81  GJL1213003R8011  10  0.170
                                    5.5   20    5    600 V /   24     1 0  BC7-30-10-F-1.4-81  GJL1313003R8101  10  0.170
                                                     16 A             0 1  BC7-30-01-F-1.4-81  GJL1313003R8011  10  0.170
                                    DC operation 17 … 32 V / 2.4 W
                                    4     20    3    300 V /   17 ... 32  1 0  BC6-30-10-F-2.4-51  GJL1213003R5101  10  0.170
                                                     12 A             0 1  BC6-30-01-F-2.4-51  GJL1213003R5011  10  0.170
                                    5.5   20    5    600 V /   17 ... 32  1 0  BC7-30-10-F-2.4-51  GJL1313003R5101  10  0.170
                                                     16 A             0 1  BC7-30-01-F-2.4-51  GJL1313003R5011  10  0.170
                                    Other types on request






















                                               52.5   2.07"        46.7   1.84"
                                                47.5   1.87"       43.7   1.72"




                                     2.26"  1.78"  1.66"
                                     57.5    45.2    42.2

                                                                                                                 2CDC102039C0201 - Rev. A
                                                                 4.5   0.18"
                                    BC6, BC7
                                    Main dimensions mm, inches
