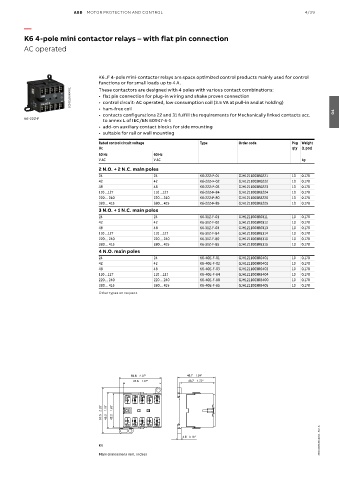

ABB MOTOR PROTECTION AND CONTROL 4/39

—
K6 4-pole mini contactor relays – with flat pin connection

AC operated

K6..F 4-pole mini-contactor relays are space optimized control products mainly used for control
functions or for small loads up to 4 A.
These contactors are designed with 4 poles with various contact combinations:
2CDC211034S0011 • flat pin connection for plug-in wiring and shake proven connection
• control circuit: AC operated, low consumption coil (3.5 VA at pull-in and at holding)
• hum-free coil
• contacts configurations 22 and 31 fulfill the requirements for Mechanically linked contacts acc. 04
K6-22Z-F to annex L of IEC/EN 60947-5-1
• add-on auxiliary contact blocks for side mounting
• suitable for rail or wall mounting

Rated control circuit voltage Type Order code Pkg Weight
Uc qty (1 pce)
50 Hz 60 Hz
V AC V AC kg
2 N.O. + 2 N.C. main poles
24 24 K6-22Z-F-01 GJH1211003R0221 10 0.170
42 42 K6-22Z-F-02 GJH1211003R0222 10 0.170
48 48 K6-22Z-F-03 GJH1211003R0223 10 0.170
110 ...127 110 ...127 K6-22Z-F-84 GJH1211003R8224 10 0.170
220 ... 240 220 ... 240 K6-22Z-F-80 GJH1211003R8220 10 0.170
380 ... 415 380 ... 415 K6-22Z-F-85 GJH1211003R8225 10 0.170
3 N.O. + 1 N.C. main poles
24 24 K6-31Z-F-01 GJH1211003R0311 10 0.170
42 42 K6-31Z-F-02 GJH1211003R0312 10 0.170
48 48 K6-31Z-F-03 GJH1211003R0313 10 0.170
110 ...127 110 ...127 K6-31Z-F-84 GJH1211003R8314 10 0.170
220 ... 240 220 ... 240 K6-31Z-F-80 GJH1211003R8310 10 0.170
380 ... 415 380 ... 415 K6-31Z-F-85 GJH1211003R8315 10 0.170
4 N.O. main poles
24 24 K6-40E-F-01 GJH1211003R0401 10 0.170
42 42 K6-40E-F-02 GJH1211003R0402 10 0.170
48 48 K6-40E-F-03 GJH1211003R0403 10 0.170
110 ...127 110 ...127 K6-40E-F-84 GJH1211003R8404 10 0.170
220 ... 240 220 ... 240 K6-40E-F-80 GJH1211003R8400 10 0.170
380 ... 415 380 ... 415 K6-40E-F-85 GJH1211003R8405 10 0.170
Other types on request.

52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2

2CDC102040C0201 - Rev. A
4.5 0.18"
K6
Main dimensions mm, inches
