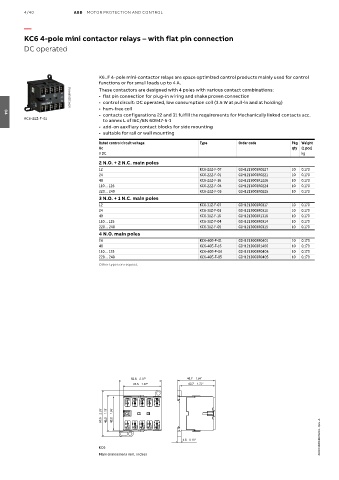

4/40 ABB MOTOR PROTECTION AND CONTROL

—
KC6 4-pole mini contactor relays – with flat pin connection

DC operated

K6..F 4-pole mini-contactor relays are space optimized control products mainly used for control
functions or for small loads up to 4 A.
2CDC211029F0011 • flat pin connection for plug-in wiring and shake proven connection
These contactors are designed with 4 poles with various contact combinations:
• control circuit: DC operated, low consumption coil (3.5 W at pull-in and at holding)
• hum-free coil
• contacts configurations 22 and 31 fulfill the requirements for Mechanically linked contacts acc.
04
KC6-22Z-F-01 to annex L of IEC/EN 60947-5-1
• add-on auxiliary contact blocks for side mounting
• suitable for rail or wall mounting
Rated control circuit voltage Type Order code Pkg Weight
Uc qty (1 pce)
V DC kg
2 N.O. + 2 N.C. main poles
12 KC6-22Z-F-07 GJH1213003R0227 10 0.170
24 KC6-22Z-F-01 GJH1213003R0221 10 0.170
48 KC6-22Z-F-16 GJH1213003R1226 10 0.170
110 ... 125 KC6-22Z-F-04 GJH1213003R0224 10 0.170
220 ... 240 KC6-22Z-F-05 GJH1213003R0225 10 0.170
3 N.O. + 1 N.C. main poles
12 KC6-31Z-F-07 GJH1213003R0317 10 0.170
24 KC6-31Z-F-01 GJH1213003R0311 10 0.170
48 KC6-31Z-F-16 GJH1213003R1316 10 0.170
110 ... 125 KC6-31Z-F-04 GJH1213003R0314 10 0.170
220 ... 240 KC6-31Z-F-05 GJH1213003R0315 10 0.170
4 N.O. main poles
24 KC6-40E-F-01 GJH1213003R0401 10 0.170
48 KC6-40E-F-16 GJH1213003R1406 10 0.170
110 ... 125 KC6-40E-F-04 GJH1213003R0404 10 0.170
220 ... 240 KC6-40E-F-05 GJH1213003R0405 10 0.170
Other types on request.

52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2
2CDC102041C0201 - Rev. A

4.5 0.18"
KC6
Main dimensions mm, inches
