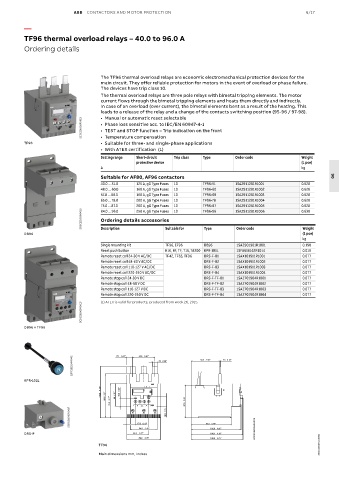

TF96 thermal overload relays – 40.0 to 96.0 A

Ordering details

The TF96 thermal overload relays are economic electromechanical protection devices for the
main circuit. They offer reliable protection for motors in the event of overload or phase failure.
The devices have trip class 10.
The thermal overload relays are three pole relays with bimetal tripping elements. The motor
current flows through the bimetal tripping elements and heats them directly and indirectly.
In case of an overload (over current), the bimetal elements bent as a result of the heating. This
leads to a release of the relay and a change of the contacts switching position (95-96 / 97-98).
• Manual or automatic reset selectable
2CDC231005F0013 • Phase loss sensitive acc. to IEC/EN 60947-4-1
• TEST and STOP function – Trip indication on the front

• Suitable for three- and single-phase applications
TF96 • Temperature compensation
• With ATEX certification (1)
Setting range Short-circuit Trip class Type Order code Weight
protective device (1 pce)
A kg
Suitable for AF80, AF96 contactors 06
40.0 ... 51.0 125 A, gG Type Fuses 10 TF96-51 1SAZ911201R1001 0.620
48.0 ... 60.0 160 A, gG Type Fuses 10 TF96-60 1SAZ911201R1002 0.620
57.0 ... 68.0 160 A, gG Type Fuses 10 TF96-68 1SAZ911201R1003 0.620
65.0 ... 78.0 200 A, gG Type Fuses 10 TF96-78 1SAZ911201R1004 0.620
75.0 ... 87.0 200 A, gG Type Fuses 10 TF96-87 1SAZ911201R1005 0.620
250 A, gG Type Fuses
10
0.630
84.0 ... 96.0
1SAZ911201R1006
TF96-96
2CDC231001V0015 Ordering details accessories
(1 pce)
DB96 Description Suitable for Type Order code Weight
kg
Single mounting kit TF96, EF96 DB96 1SAZ901901R1001 0.190
Reset push button E16, EF, TF, T16, TA200 KPR-101L 1SFA616162R1014 0.019
Remote reset coil 24-30 V AC/DC TF42, TF65, TF96 DRS-F-01 1SAX101911R1001 0.077
Remote reset coil 48-60 V AC/DC DRS-F-02 1SAX101911R1002 0.077
Remote reset coil 110-127 V AC/DC DRS-F-03 1SAX101911R1003 0.077
Remote reset coil 220-240 V AC/DC DRS-F-04 1SAX101911R1004 0.077
Remote stop coil 24-30 V DC DRS-F-TF-01 1SAZ701904R1001 0.077
Remote stop coil 48-60 V DC DRS-F-TF-02 1SAZ701904R1002 0.077
Remote stop coil 110-127 V DC DRS-F-TF-03 1SAZ701904R1003 0.077
Remote stop coil 220-240 V DC DRS-F-TF-04 1SAZ701904R1004 0.077
(1) ATEX is valid for products, produced from week 26, 2015.
2CDC231005V0015

DB96 + TF96

1SFC151224F0002 12.1 0.47" 45.8 1.80" 10 0.39" 58.5 2.30" 2.5 0.10"

KPR-101L
106.3 4.19" 60.6 3.57" 46 1.81" 16.6 0.65"
70.3 2.77" 67.5 2.66"
2CDC211002V0017 2T1 4T2 6T3 18.9 0.74"

17.9 0.70"
102.8 4.05"
54.9 2.16" 83.5 3.29" 2CDC232005F0009
DRS-F 44.9 1.77" 106.1 4.18"
69.9 2.75" 106.9 4.21"
TF96 2CDC106064C0201
Main dimensions mm, inches
