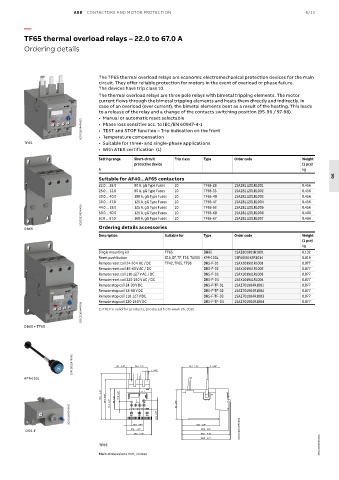

ABB CONTACTORS AND MOTOR PROTECTION 6/13

—
TF65 thermal overload relays – 22.0 to 67.0 A

Ordering details

The TF65 thermal overload relays are economic electromechanical protection devices for the main
circuit. They offer reliable protection for motors in the event of overload or phase failure.
The devices have trip class 10.
The thermal overload relays are three pole relays with bimetal tripping elements. The motor
current flows through the bimetal tripping elements and heats them directly and indirectly. In
case of an overload (over current), the bimetal elements bent as a result of the heating. This leads
to a release of the relay and a change of the contacts switching position (95-96 / 97-98).
• Manual or automatic reset selectable
2CDC231004F0013 • Phase loss sensitive acc. to IEC/EN 60947-4-1
• TEST and STOP function – Trip indication on the front

• Suitable for three- and single-phase applications
TF65 • Temperature compensation
• With ATEX certification (1)
Setting range Short-circuit Trip class Type Order code Weight
protective device (1 pce)
A kg
Suitable for AF40...AF65 contactors 06
22.0 ... 28.0 80 A, gG Type Fuses 10 TF65-28 1SAZ811201R1001 0.456
25.0 ... 33.0 80 A, gG Type Fuses 10 TF65-33 1SAZ811201R1002 0.456
30.0 ... 40.0 100 A, gG Type Fuses 10 TF65-40 1SAZ811201R1003 0.456
36.0 ... 47.0 125 A, gG Type Fuses 10 TF65-47 1SAZ811201R1004 0.456
125 A, gG Type Fuses
0.456
44.0 ... 53.0
1SAZ811201R1005
TF65-53
10
2CDC231003V0015 50.0 ... 60.0 125 A, gG Type Fuses 10 TF65-60 1SAZ811201R1006 0.466
1SAZ811201R1007
160 A, gG Type Fuses
TF65-67
0.466
57.0 ... 67.0
10
DB65 Ordering details accessories
Description Suitable for Type Order code Weight
(1 pce)
kg
Single mounting kit TF65 DB65 1SAZ801901R1001 0.132
Reset push button E16, EF, TF, T16, TA200 KPR-101L 1SFA616162R1014 0.019
Remote reset coil 24-30 V AC / DC TF42, TF65, TF96 DRS-F-01 1SAX101911R1001 0.077
Remote reset coil 48-60 V AC / DC DRS-F-02 1SAX101911R1002 0.077
Remote reset coil 110-127 V AC / DC DRS-F-03 1SAX101911R1003 0.077
Remote reset coil 220-240 V AC / DC DRS-F-04 1SAX101911R1004 0.077
Remote stop coil 24-30 V DC DRS-F-TF-01 1SAZ701904R1001 0.077
Remote stop coil 48-60 V DC DRS-F-TF-02 1SAZ701904R1002 0.077
Remote stop coil 110-127 V DC DRS-F-TF-03 1SAZ701904R1003 0.077
Remote stop coil 220-240 V DC DRS-F-TF-04 1SAZ701904R1004 0.077
2CDC231004V0015 1) ATEX is valid for products, produced from week 26, 2015.
DB65 + TF65

1SFC151224F0002 10.1 0.40" 34.8 1.37" 7 0.28" 55.7 2.19" 4 0.08"

KPR-101L

101.4 3.45" 87.7 3.45" 67.8 2.67" 46 1.81" 16.6 0.65" 65 2.56"
2CDC211002V0017 2T1 4T2 6T3 18.9 0.74"

10.4 0.41"
102.8 4.05"
DRS-F 37.4 1.47" 83.5 3.29" 2CDC232005F0009
54.9 2.16" 106.1 4.18"
106.9 4.21"
TF65 2CDC106063C0201
Main dimensions mm, inches
