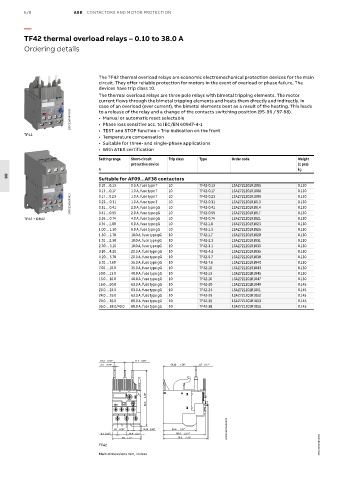

Page 716 - Motor protection and control Manual motor starters, contactors and overload relays

6/8 ABB CONTACTORS AND MOTOR PROTECTION

—
TF42 thermal overload relays – 0.10 to 38.0 A

Ordering details

The TF42 thermal overload relays are economic electromechanical protection devices for the main
circuit. They offer reliable protection for motors in the event of overload or phase failure. The
devices have trip class 10.
The thermal overload relays are three pole relays with bimetal tripping elements. The motor
current flows through the bimetal tripping elements and heats them directly and indirectly. In
case of an overload (over current), the bimetal elements bent as a result of the heating. This leads
to a release of the relay and a change of the contacts switching position (95-96 / 97-98).
2CDC231006F0013 • Manual or automatic reset selectable
• Phase loss sensitive acc. to IEC/EN 60947-4-1
TF42 • TEST and STOP function – Trip indication on the front
• Temperature compensation
• Suitable for three- and single-phase applications
• With ATEX certification
Setting range Short-circuit Trip class Type Order code Weight
protective device (1 pce)
A kg
Suitable for AF09...AF38 contactors
06
0.10 ... 0.13 0.5 A, fuse type T 10 TF42-0.13 1SAZ721201R1005 0.130
0.13 ... 0.17 1.0 A, fuse type T 10 TF42-0.17 1SAZ721201R1008 0.130
2CDC231026F0013 0.23 ... 0.31 1.0 A, fuse type T 10 TF42-0.31 1SAZ721201R1013 0.130
1SAZ721201R1009
0.130
TF42-0.23
1.0 A, fuse type T
10
0.17 ... 0.23
1SAZ721201R1014
0.31 ... 0.41
TF42-0.41
10
0.130
2.0 A, fuse type gG
TF42-0.74
0.55 ... 0.74
10
4.0 A, fuse type gG
1SAZ721201R1021
0.130
TF42 + DB42 0.41 ... 0.55 2.0 A, fuse type gG 10 TF42-0.55 1SAZ721201R1017 0.130
0.74 ... 1.00 6.0 A, fuse type gG 10 TF42-1.0 1SAZ721201R1023 0.130
1.00 ... 1.30 6.0 A, fuse type gG 10 TF42-1.3 1SAZ721201R1025 0.130
1.30 ... 1.70 10.0 A, fuse type gG 10 TF42-1.7 1SAZ721201R1028 0.130
1.70 ... 2.30 10.0 A, fuse type gG 10 TF42-2.3 1SAZ721201R1031 0.130
2.30 ... 3.10 10.0 A, fuse type gG 10 TF42-3.1 1SAZ721201R1033 0.130
3.10 ... 4.20 20.0 A, fuse type gG 10 TF42-4.2 1SAZ721201R1035 0.130
4.20 ... 5.70 20.0 A, fuse type gG 10 TF42-5.7 1SAZ721201R1038 0.130
5.70 ... 7.60 35.0 A, fuse type gG 10 TF42-7.6 1SAZ721201R1040 0.130
7.60 ... 10.0 35.0 A, fuse type gG 10 TF42-10 1SAZ721201R1043 0.130
10.0 ... 13.0 40.0 A, fuse type gG 10 TF42-13 1SAZ721201R1045 0.130
13.0 ... 16.0 40.0 A, fuse type gG 10 TF42-16 1SAZ721201R1047 0.130
16.0 ... 20.0 63.0 A, fuse type gG 10 TF42-20 1SAZ721201R1049 0.145
20.0 ... 24.0 63.0 A, fuse type gG 10 TF42-24 1SAZ721201R1051 0.145
24.0 ... 29.0 63.0 A, fuse type gG 10 TF42-29 1SAZ721201R1052 0.145
29.0 ... 35.0 80.0 A, fuse type gG 10 TF42-35 1SAZ721201R1053 0.145
35.0 ... 38.0/40.0 80.0 A, fuse type gG 10 TF42-38 1SAZ721201R1055 0.145
16.2 0.64" 11.7 0.46"
2.3 0.09" 50.25 1.98" 2.7 0.11"

3.48"
88.3

9.1 0.36" 12.35 0.49" 52.6 2.07" 2CDC232005F0009
8.1 0.32" 14.4 0.57" 66.4 2.61"
45 1.77" 70.5 2.78"
TF42 2CDC106046C0201
Main dimensions mm, inches
