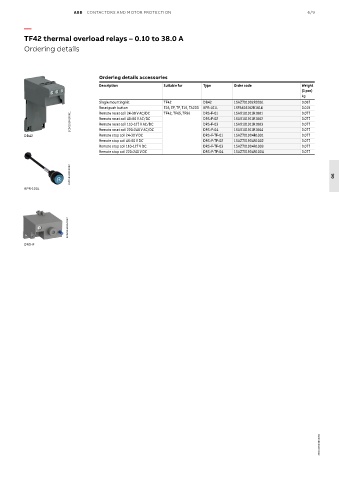

Page 717 - Motor protection and control Manual motor starters, contactors and overload relays

ABB CONTACTORS AND MOTOR PROTECTION 6/9

—
TF42 thermal overload relays – 0.10 to 38.0 A

Ordering details

Ordering details accessories
Description Suitable for Type Order code Weight
(1 pce)
kg
Single mounting kit TF42 DB42 1SAZ701902R0001 0.087
Reset push button E16, EF, TF, T16, TA200 KPR-101L 1SFA616162R1014 0.019
Remote reset coil 24-30 V AC/DC
DRS-F-01
TF42, TF65, TF96
1SAX101911R1001
0.077
2CDC231001F0011 Remote reset coil 48-60 V AC/DC DRS-F-02 1SAX101911R1002 0.077
0.077
DRS-F-03
Remote reset coil 110-127 V AC/DC
1SAX101911R1003
0.077
DRS-F-TF-01
1SAZ701904R1001
Remote stop coil 24-30 V DC
DB42 Remote reset coil 220-240 V AC/DC DRS-F-04 1SAX101911R1004 0.077
Remote stop coil 48-60 V DC DRS-F-TF-02 1SAZ701904R1002 0.077
Remote stop coil 110-127 V DC DRS-F-TF-03 1SAZ701904R1003 0.077
Remote stop coil 220-240 V DC DRS-F-TF-04 1SAZ701904R1004 0.077
1SFC151224F0002 06
KPR-101L

2CDC211002V0017

DRS-F

2CDC106046C0201
