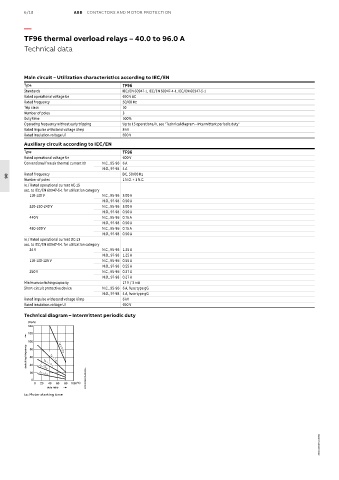

Page 726 - Motor protection and control Manual motor starters, contactors and overload relays
P. 726

6/18             ABB  CONTACTORS AND MOTOR PROTECTION

          —
          TF96 thermal overload relays – 40.0 to 96.0 A

          Technical data




          Main circuit – Utilization characteristics according to IEC/EN
          Type                              TF96
          Standards                         IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1
          Rated operational voltage Ue      690 V AC
          Rated frequency                   50/60 Hz
          Trip class                        10
          Number of poles                   3
          Duty time                         100%
          Operating frequency without early tripping  Up to 15 operations/h, see "Technical diagram – Intermittent periodic duty"
          Rated impulse withstand voltage Uimp  8 kV
          Rated insulation voltage Ui       690 V
          Auxiliary circuit according to IEC/EN
          Type                              TF96
          Rated operational voltage Ue      600 V
          Conventional free air thermal current Ith  N.C., 95-96 6 A
                                     N.O., 97-98 4 A
          Rated frequency                   DC, 50/60 Hz
          Number of poles                   1 N.O. + 1 N.C.
   06
          Ie / Rated operational current AC-15
          acc. to IEC/EN 60947-5-1 for utilization category
           110-120 V                 N.C., 95-96 3.00 A
                                     N.O., 97-98 0.50 A
           220-230-240 V             N.C., 95-96 3.00 A
                                     N.O., 97-98 0.50 A
           440 V                     N.C., 95-96 0.75 A
                                     N.O., 97-98 0.50 A
           480-500 V                 N.C., 95-96 0.75 A
                                     N.O., 97-98 0.50 A
          Ie / Rated operational current DC-13
          acc. to IEC/EN 60947-5-1 for utilization category
           24 V                      N.C., 95-96 1.25 A
                                     N.O., 97-98 1.25 A
           110-120-125 V             N.C., 95-96 0.55 A
                                     N.O., 97-98 0.55 A
           250 V                     N.C., 95-96 0.27 A
                                     N.O., 97-98 0.27 A
          Minimum switching capacity        17 V / 3 mA
          Short-circuit protective device  N.C., 95-96 6 A, fuse type gG
                                     N.O., 97-98 4 A, fuse type gG
          Rated impulse withstand voltage Uimp  6 kV
          Rated insulation voltage Ui       690 V
          Technical diagram – Intermittent periodic duty
           (Op/h)
           140
           120
           100        a
          switching frequency  60  t   = 1.5 s
           80
                      t   = 0.5 s
                   a
                 a
                   t   = 1 s
           40
               a
               a
           20  t   = 3 s
               t   = 5 s
            0                  2CDC232004F0214
             0  20  40  60  80  100  (%)
                  duty ratio
          ta: Motor starting time
