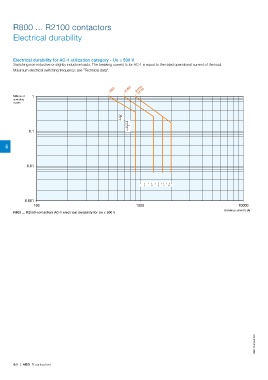

R800 ... R2100 contactors
Electrical durability

Electrical durability for AC-1 utilization category - Ue ≤ 500 V
Switching non-inductive or slightly inductive loads. The breaking current Ic for AC-1 is equal to the rated operational current of the load.
Maximum electrical switching frequency: see "Technical data".

Millions of 1 R800
operating R1400
cycles R21R010700

0.1 1 59
1 3 579
6
1 3 5 79 10000
0.01
1000 Breaking current Ic (A)
0.001
100

R800 ... R2100 contactors AC-1 electrical durability for Ue ≤ 500 V

1SBC104055S0201
