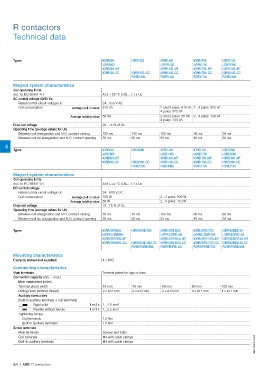

P. 106
R contactors
Technical data
Types IORR800 IORR1000 IORR1400 IORR1700 IORR2100
LORR800 LORR1400 LORR1700 LORR2100
IORR800..MT IORR1000..CC IORR1400..MT IORR1700..MT IORR2100..MT
IORR800..CC FORR1000 IORR1400..CC IORR1700..CC IORR2100..CC
FORR1400 FORR1700 FORR2100
Magnet system characteristics
Coil operating limits
acc. to IEC 60947-4-1 At θ ≤ 55 °C 0.85…1.1 x Uc
AC control voltage 50/60 Hz 24…550 V AC
610 VA
Rated control circuit voltage Uc
Coil consumption Average pull-in value 2 and 3 poles: 610 VA 2...4 poles: 925 VA
4 poles: 925 VA
Average holding value 55 VA 2 and 3 poles: 55 VA 2...4 poles: 130 VA
4 poles: 130 VA
Drop-out voltage 20...75 % of Uc 100 ms 100 ms 90 ms 90 ms
Operating time (average values for Uc) 55 ms 55 ms 40 ms 30 ms
100 ms
Between coil energization and N.O. contact closing 55 ms IORE1000 IORE1400 IORE1700 IORE2100
Between coil de-energization and N.O. contact opening LORE1400 LORE1700 LORE2100
IORE800 IORE1000..CC IORE1400..MT IORE1700..MT IORE2100..MT
6 LORE800 FORE1000 IORE1400..CC IORE1700..CC IORE2100..CC
Types IORE800..MT FORE1400 FORE1700 FORE2100
IORE800..CC
Magnet system characteristics
Coil operating limits
acc. to IEC 60947-4-1 At θ ≤ 55 °C 0.85…1.1 x Uc
DC control voltage
Rated control circuit voltage Uc 24…600 V DC
700 W
Coil consumption Average pull-in value 55 W 2...4 poles: 930 W
10...75 % of Uc 2...4 poles: 110 W
Average holding value
Drop-out voltage
Operating time (average values for Uc)
Between coil energization and N.O. contact closing 70 ms 70 ms 100 ms 90 ms 90 ms
50 ms 50 ms 55 ms 40 ms 30 ms
Between coil de-energization and N.O. contact opening
Types IORR/IORE800 IORR/IORE1000 IORR/IORE1400 IORR/IORE1700 IORR/IORE2100
LORR/LORE800 LORR/LORE1400 LORR/LORE1700 LORR/LORE2100
Mounting characteristics IORR/IORE800..MT IORR/IORE1000..CC IORR/IORE1400..MT IORR/IORE1700..MT IORR/IORE2100..MT
IORR/IORE800..CC FORR/FORE1000 IORR/IORE1400..CC IORR/IORE1700..CC IORR/IORE2100..CC
Fixing by screws (not supplied) FORR/FORE1400 FORR/FORE1700 FORR/FORE2100
Connecting characteristics 4 x M12
Terminal plates for lugs or bars
Main terminals
Connection capacity (min. ... max.) 48 mm 48 mm 60 mm 80 mm 100 mm
2 x ø13 mm 2 x ø13 mm 2 x ø13 mm 4 x ø11 mm 4 x ø11 mm
Main conductors (poles)
Terminal plates width 1 or 2 x 1...2.5 mm² 1SBC104021S0201
Drilling holes (without thread) 1 or 2 x 1...2.5 mm²
Auxiliary conductors
(built-in auxiliary terminals + coil terminals) 1.5 Nm
1.5 Nm
Rigid solid
Flexible without ferrule Screws and bolts
Tightening torque M4 with cable clamps
Coil terminals M4 with cable clamps
Built-in auxiliary terminals
Screw terminals
Main terminals
Coil terminals
Built-in auxiliary terminals
6/4 | ABB R contactors
