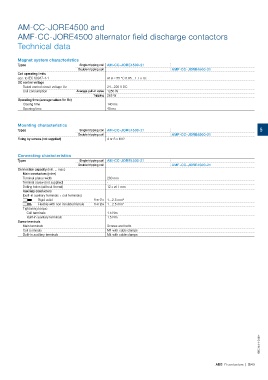

Page 101 - 1SBC104119C0202_MainCatalog_R contactors

AM-CC-JORE4500 and
AMF-CC-JORE4500 alternator field discharge contactors
Technical data

Magnet system characteristics

Types Single tripping coil AM-CC-JORE4500-21

Double tripping coil At θ ≤ 55 °C 0.85…1.1 x Uc AMF-CC-JORE4500-21

Coil operating limits 24…220 V DC
1250 W
acc. to IEC 60947-4-1 265 W

DC control voltage 140 ms
40 ms
Rated control circuit voltage Uc

Coil consumption Average pull-in value

Tripping

Operating time (average values for Uc)

Closing time

Opening time

Mounting characteristics Single tripping coil AM-CC-JORE4500-21 AMF-CC-JORE4500-21 5
Double tripping coil
Types
4 or 6 x M12
Fixing by screws (not supplied)

Connecting characteristics

Types Single tripping coil AM-CC-JORE4500-21

Double tripping coil 280 mm AMF-CC-JORE4500-21
-
Connection capacity (min. ... max.) 12 x ø11 mm

Main conductors (poles) 1…2.5 mm²
Terminal plates width 1…2.5 mm²

Terminal screw (not supplied) 1.5 Nm
1.5 Nm
Drilling holes (without thread)
Screws and bolts
Auxiliary conductors M4 with cable clamps
M4 with cable clamps
(built-in auxiliary terminals + coil terminals)

Rigid solid 1 or 2 x

Flexible with non insulated ferrule 1 or 2 x

Tightening torque

Coil terminals

Built-in auxiliary terminals

Screw terminals

Main terminals

Coil terminals

Built-in auxiliary terminals

1SBC104111S0201

ABB R contactors | 5/49
