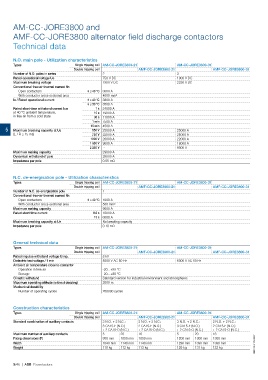

AM-CC-JORE3800 and
AMF-CC-JORE3800 alternator field discharge contactors
Technical data

N.O. main pole - Utilization characteristics

Types Single tripping coil AM-CC-JORE3800-21 AM-CC-JORE3800-31

Double tripping coil AMF-CC-JORE3800-21 AMF-CC-JORE3800-31
2 3
Number of N.O. poles in series

Rated operational voltage Ue 750 V DC 1000 V DC

Maximum breaking voltage 1500 V DC 2250 V DC

Conventional free-air thermal current Ith

Open contactors θ ≤ 40 °C 3800 A
With conductor cross-sectional area 4000 mm²

Ie / Rated operational current θ ≤ 40 °C 3800 A
Rated short-time withstand current Icw θ ≤ 50 °C 3500 A
at 40 °C ambient temperature, 24000 A
in free air from a cold state 1s 19000 A
11000 A
10 s

30 s

1 min 7500 A

5 Maximum breaking capacity at Ue 15 min 4500 A 25000 A
(L / R ≤ 15 ms) 550 V 25000 A 25000 A
750 V 22000 A

1000 V 20000 A 22000 A

1 500 V 9000 A 18000 A

2 250 V - 9000 A

Maximum making capacity 29000 A

Dynamical withstand of pole 29000 A

Impedance per pole 0.05 mΩ

N.C. de-energisation pole - Utilization characteristics

Types Single tripping coil AM-CC-JORE3800-21 AM-CC-JORE3800-31

Double tripping coil AMF-CC-JORE3800-21 AMF-CC-JORE3800-31

Number of N.C. de-energisation pole 1

Conventional free-air thermal current Ith

Open contactors θ ≤ 40 °C 1000 A
With conductor cross-sectional area 500 mm²

Maximum making capacity 9000 A

Rated short time current 0.5 s 10000 A

15 s 6000 A

Maximum breaking capacity at Ue No breaking capacity

Impedance per pole 0.18 mΩ

General technical data

Types Single tripping coil AM-CC-JORE3800-21 AM-CC-JORE3800-31

Double tripping coil AMF-CC-JORE3800-21 AMF-CC-JORE3800-31

Rated impulse withstand voltage Uimp. 8 kV

Dielectric test voltage / 1 min 5500 V AC 50 Hz 6000 V AC 50 Hz

Ambient air temperature close to contactor

Operation in free air -20…+55 °C
-20…+80 °C
Storage Standard version for industrial environment and atmospheres
2000 m
Climatic withstand

Maximum operating altitude (without derating)

Mechanical durability

Number of operating cycles 200000 cycles

Construction characteristics

Types Single tripping coil AM-CC-JORE3800-21 AM-CC-JORE3800-31

Double tripping coil AMF-CC-JORE3800-21 AMF-CC-JORE3800-31

Standard combination of auxiliary contacts 3 N.O. + 2 N.C.: 2 N.O. + 2 N.C.: 3 N.O. + 2 N.C.: 2 N.O. + 2 N.C.:

3 CA15-F (N.O.) 2 CA15-F (N.O.) 3 CA15-F (N.O.) 2 CA15-F (N.O.)
+ 2 CA15-O (N.C.) + 2 CA15-O (N.C.) + 2 CA15-O (N.C.) + 2 CA15-O (N.C.)

Maximum number of auxiliary contacts 5 20 16 5 20 16 1SBC104110S0201
Fixing dimensions (F)
950 mm 1050 mm 1050 mm 1200 mm 1300 mm 1300 mm
Width
Weight 1040 mm 1140 mm 1140 mm 1290 mm 1390 mm 1390 mm

110 kg 112 kg 113 kg 129 kg 131 kg 132 kg

5/46 | ABB R contactors
