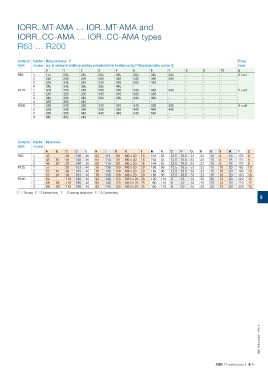

P. 153
IORR..MT-AMA … IOR..MT-AMA and
IORR..CC-AMA … IOR..CC-AMA types
R63 … R200
Contactor Number Fixing dimension - F Fixing
holes
types of poles acc. to number of additional auxiliary contacts (refer to Auxiliary contact fitting details table, section 2):
0 1 2 3 4 5 6 7 8 9 10 ø
R63 1 175 245 245 245 285 285 345 345 - - - 2 x ø7
2 245 245 285 285 345 345 385 385 - - -
3 285 345 345 345 385 385 445 - - - -
4 345 345 385 385 445 - - - - - -
R125 1 205 205 245 285 285 345 345 345 - - - 2 x ø7
2 245 285 285 345 345 385 385 - - - -
3 345 345 345 385 385 445 445 - - - -
4 385 385 445 - - - - - - - -
R200 1 245 245 285 345 345 345 385 385 - - - 2 x ø9
2 285 345 345 385 385 445 445 445 - - -
3 385 385 445 445 445 540 540 - - - -
4 445 445 540 - - - - - - - -
Contactor Number Dimensions
types of poles
A BCDE HI I1 K ℓ M N O P Q R S V WY Z
R63 1 45 - 93 148 36 63 114 101 M6 x 20 16 164 83 12.5 10.5 53 23 15 8 16 178 8
R125 2 45 50 93 148 36 63 114 101 M6 x 20 16 164 83 12.5 10.5 53 23 15 8 16 178 8
R200 3 45 50 93 148 36 63 114 101 M6 x 20 16 164 83 12.5 10.5 53 23 15 8 16 178 8
1 57 - 93 153 40 76 138 130 M8 x 20 20 188 96 12.5 10.5 53 23 15 10 20 183 10
2 57 61 93 153 40 76 138 130 M8 x 20 20 188 96 12.5 10.5 53 23 15 10 20 183 10
3 57 61 93 153 40 76 138 130 M8 x 20 20 188 96 12.5 10.5 53 23 15 10 20 183 10
1 69 - 116 190 40 93 140 123 M10 x 25 25 190 116 9 10 53 20 25 13 20 220 12
2 69 68 116 190 40 93 140 123 M10 x 25 25 190 116 9 10 53 20 25 13 20 220 12
3 69 68 116 190 40 93 140 123 M10 x 25 25 190 116 9 10 53 20 25 13 20 220 12
Fixing - Dimensions - Clearing distances - Connecting 9
1SBC104014S0201 - Rev. A
ABB R contactors | 9/17
