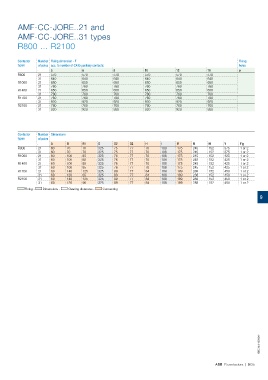

Page 171 - 1SBC104119C0202_MainCatalog_R contactors

AMF-CC-JORE..21 and
AMF-CC-JORE..31 types
R800 … R2100

Contactor Number Fixing dimension - F Fixing
types of poles acc. to number of CA15 auxiliary contacts: holes

5 6 8 10 12 16 ø

R800 21 570 570 570 570 570 570
31 640 640 640 640 640 640
R1000 21 650 650 650 650 650 650
31 760 760 760 760 760 760
R1400 21 650 650 650 650 650 650
31 760 760 760 760 760 760
R1700 21 760 760 760 760 760 760
31 920 920 920 920 920 920
R2100 21 760 760 760 760 760 760
31 920 920 920 920 920 920

Contactor Number Dimensions
types of poles

A B B1 D D2 D3 H I I1 M N Y Fig

R800 21 60 70 70 325 75 77 70 108 175 245 152 375 1 or 2
31 60 70 70 325 75 77 70 108 175 245 152 375 1 or 2
R1000 21 60 100 85 325 76 77 70 108 175 245 152 425 1 or 2
31 60 100 85 325 76 77 70 108 175 245 152 425 1 or 2
R1400 21 60 100 85 325 76 77 70 108 175 245 152 425 1 or 2
31 60 100 85 325 76 77 70 108 175 245 152 425 1 or 2
R1700 21 60 140 125 325 89 77 84 108 189 288 152 450 1 or 2
31 60 120 95 325 89 77 84 108 189 288 152 450 1 or 2
R2100 21 60 140 125 325 89 77 84 108 189 288 152 450 1 or 2
31 60 120 95 325 89 77 84 108 189 288 152 450 1 or 2

Fixing - Dimensions - Clearing distances - Connecting

9

1SBC104113S0201

ABB R contactors | 9/35
