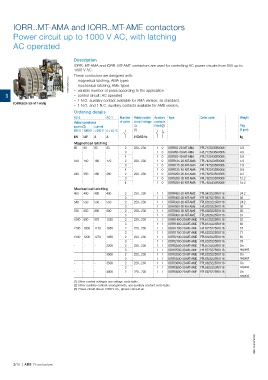

IORR..MT-AMA and IORR..MT-AME contactors
Power circuit up to 1000 V AC, with latching
AC operated

3 1SBC104044F0000 Description

IORR800-30-MT-AME IORR..MT-AMA and IORR..MT-AME contactors are used for controlling AC power circuits from 500 up to
1000 V AC.

These contactors are designed with:
–– magnetical latching, AMA types
–– mechanical latching, AME types
–– variable number of poles according to the application
–– control circuit: AC operated
–– 1 N.O. auxiliary contact available for AMA version, as standard.
–– 1 N.O. and 1 N.C. auxiliary contacts available for AME version.

Ordering details

AC-3 AC-1 Number Rated control Auxiliary Type Order code Weight
of poles
Rated operational circuit voltage contacts Pkg
θ ≤ 40 °C fitted (2) (1 pce)
power (3) current Uc
(1) kg
690 V 1000 V ≤ 690 V

kW kW A A V 50/60 Hz

Magnetical latching

80 80 85 85 2 220...230 1 0 IORR63-20-MT-AMA FPL7125236R0006 3.9
3 1 0 IORR63-30-MT-AMA FPL7125336R0006 4.9
150 150 160 170 4 1 0 IORR63-40-MT-AMA FPL7125436R0006 5.9
2 220...230 1 0 IORR125-20-MT-AMA FPL7425235R0006 5.9
240 250 260 260 3 1 0 IORR125-30-MT-AMA FPL7425335R0006 7.9
4 1 0 IORR125-40-MT-AMA FPL7425435R0006 9.9
2 220...230 1 0 IORR200-20-MT-AMA FPL7625235R0006 9.2
3 1 0 IORR200-30-MT-AMA FPL7625335R0006 12.2
4 1 0 IORR200-40-MT-AMA FPL7625435R0006 15.2

Mechanical latching 2 220...230 1 1 IORR400-20-MT-AME FPL9425225R0116 24.2
400 400 400 400 3 1 1 IORR400-30-MT-AME FPL9425325R0116 30
2 220...230 1 1 IORR500-20-MT-AME FPL8325225R0116 24.2
540 550 550 550 3 1 1 IORR500-30-MT-AME FPL8325325R0116 30
2 220...230 1 1 IORR800-20-MT-AME FPL8625225R0116 50
780 850 800 800 3 1 1 IORR800-30-MT-AME FPL8625325R0116 61
2 220...230 1 1 IORR1400-20-MT-AME FPL6125225R0116 52
1000 900 970 1250 3 1 1 IORR1400-30-MT-AME FPL6125325R0116 62
2 220...230 1 1 IORR1700-20-MT-AME FPL6225225R0116 57
1200 1000 1170 1650 3 1 1 IORR1700-30-MT-AME FPL6225325R0116 71
2 220...230 1 1 IORR2100-20-MT-AME FPL6325225R0116 62
1300 1200 1270 1850 3 1 1 IORR2100-30-MT-AME FPL6325325R0116 78
2 220...230 1 1 IORR2500-20-MT-AME FPL6725225R0116 On
-- - 2200 3 1 1 IORR2500-30-MT-AME FPL6725325R0116 request
2 220...230 1 1 IORR3200-20-MT-AME FPL6525225R0116
-- - 3000 3 1 1 IORR3200-30-MT-AME FPL6525325R0116 On
2 220...230 1 1 IORR3800-20-MT-AME FPL6625225R0116 request
-- - 3500 3 1 1 IORR3800-30-MT-AME FPL6625325R0116
2 220...230 1 1 IORR4500-20-MT-AME FPL6825225R0116 On
-- - 4000 request

On
request

(1) Other control voltages see voltage code table.
(2) Other auxiliary contact arrangements, see auxiliary contact code table.
(3) Power circuit above 1000 V AC, please consult us.
