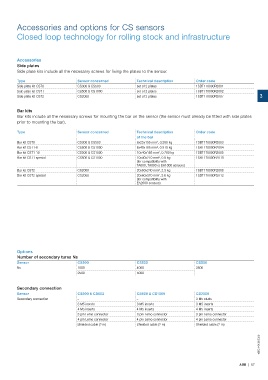

Accessories and options for CS sensors
Closed loop technology for rolling stock and infrastructure

Accessories
Side plates
Side plate kits include all the necessary screws for fixing the plates to the sensor.

Type Sensor concerned Technical description Order code
Side plate kit CST0 CS300 & CS503 set of 2 plates 1SBT170000R2001
Side plate kit CST1 CS500 & CS1000 set of 2 plates 1SBT170000R2002
Side plate kit CST2 CS2000 set of 2 plates 1SBT170000R2007 3

Bar kits
Bar kits include all the necessary screws for mounting the bar on the sensor (the sensor must already be fitted with side plates
prior to mounting the bar).

Type Sensor concerned Technical description Order code
of the bar
Bar kit CST0 CS300 & CS503 6x25x155 mm², 0.280 kg 1SBT170000R2003
Bar kit CST1-6 CS500 & CS1000 6x40x185 mm², 0.510 kg 1SBT170000R2004
Bar kit CST1-10 CS500 & CS1000 10x40x185 mm², 0.760 kg 1SBT170000R2005
Bar kit CST1 special CS500 & CS1000 10x40x210 mm², 0.8 kg 1SBT170000R2010
(for compatibility with
TA600, TA800 et EA1000 sensors)
Bar kit CST2 CS2000 20x60x240 mm², 2.5 kg 1SBT170000R2008
Bar kit CST2 special CS2000 20x60x370 mm², 3.8 kg 1SBT170000R2012
(for compatibility with
EA2000 sensors)

Options
Number of secondary turns Ns
Sensor CS300 CS503 CS500
Ns 1000 4000 3500
2500 5000

Secondary connection
Sensor CS300 & CS503 CS500 & CS1000 CS2000
Secondary connection – – 3 M5 studs
3 M5 inserts 3 M5 inserts 3 M5 inserts
4 M5 inserts 4 M5 inserts 4 M5 inserts
3 pin Lemo connector 3 pin Lemo connector 3 pin Lemo connector
4 pin Lemo connector 4 pin Lemo connector 4 pin Lemo connector
Shielded cable (2 m) Shielded cable (2 m) Shielded cable (2 m)

1SBC140039S0201
