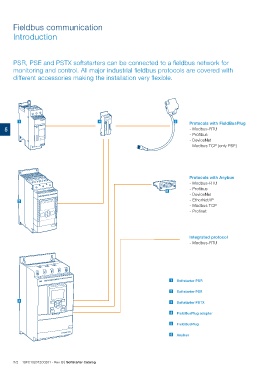

Fieldbus communication

Introduction

PSR, PSE and PSTX softstarters can be connected to a fieldbus network for
monitoring and control. All major industrial fieldbus protocols are covered with
different accessories making the installation very flexible.

1 4 5
Protocols with FieldBusPlug
5 - Modbus-RTU
- Profibus
- DeviceNet
- Modbus TCP (only PSE)

Protocols with Anybus
- Modbus-RTU
- Profibus
6
- DeviceNet
2 - EtherNet/IP
- Modbus TCP
- Profinet

Integrated protocol
- Modbus-RTU

1 Softstarter PSR

2 Softstarter PSE

3 3 Softstarter PSTX

4 FieldBusPlug adapter

5 FieldBusPlug

6 Anybus
