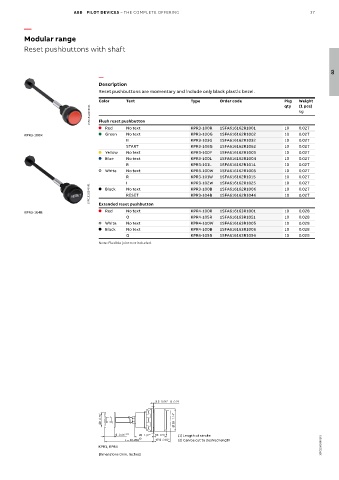

Page 39 - Pilot-Devices-The-complete-offering

ABB PILOT DEVICES – THE COMPLETE OFFERING 37

—

Modular range
Reset pushbuttons with shaft

02
—
Description
Reset pushbuttons are momentary and include only black plastic bezel.
Color Text Type Order code Pkg Weight
qty
(1 pce)
1SFC151225V0001 Flush reset pushbutton kg

l Red No text KPR3-100R 1SFA616162R1001 10 0.027
KPR3-100R l Green No text KPR3-100G 1SFA616162R1002 10 0.027
II KPR3-103G 1SFA616162R1032 10 0.027
START KPR3-106G 1SFA616162R1062 10 0.027
l Yellow No text KPR3-100Y 1SFA616162R1003 10 0.027
l Blue No text KPR3-100L 1SFA616162R1004 10 0.027
R KPR3-101L 1SFA616162R1014 10 0.027
White No text KPR3-100W 1SFA616162R1005 10 0.027
R KPR3-101W 1SFA616162R1015 10 0.027
I KPR3-102W 1SFA616162R1025 10 0.027
1SFC151222V0001 l Black No text KPR3-100B 1SFA616162R1006 10 0.027
RESET
1SFA616162R1046
10
0.027
KPR3-104B
No text
l Red
KPR3-104B Extended reset pushbutton KPR4-100R 1SFA616163R1001 10 0.028
O KPR4-105R 1SFA616163R1051 10 0.028
White No text KPR4-100W 1SFA616163R1005 10 0.028
l Black No text KPR4-100B 1SFA616163R1006 10 0.028
O KPR4-105B 1SFA616163R1056 10 0.028
Note: Flexible joint not included.

1.5 0.06" - 6 0.24" 1.5 0.06" - 6 0.24"
20 0.79" Ø 29 1.14" Ø 29 1.14"

9 0.35" (1) 26 1.02" 13 0.51" (1) Length of stroke 13 0.51"
26 1.02"
(2)
17.5 0.69"
L = 40-200 17.5 0.69" (2) Can be cut to desired length
KPR3, KPR4 1SFC151026S0201
Dimensions (mm, inches)
