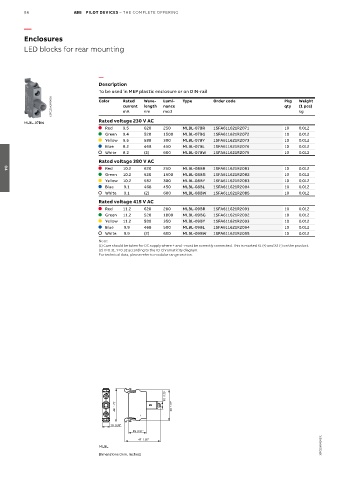

86 ABB PILOT DEVICES – THE COMPLETE OFFERING

—

Enclosures
LED blocks for rear mounting

—
Description
To be used in MEP plastic enclosure or on DIN-rail
1SFC151416V0001 Color Rated Wave- Lumi- Type Order code Pkg Weight
nance
qty (1 pce)
current
length
mA
nm
kg
mcd
Rated voltage 230 V AC
MLBL-07BW
l Red 9.5 620 250 MLBL-07BR 1SFA611621R2071 10 0.012
l Green 9.4 520 1500 MLBL-07BG 1SFA611621R2072 10 0.012
l Yellow 9.5 588 300 MLBL-07BY 1SFA611621R2073 10 0.012
l Blue 8.2 468 450 MLBL-07BL 1SFA611621R2074 10 0.012
l White 8.2 (2) 600 MLBL-07BW 1SFA611621R2075 10 0.012
Rated voltage 380 V AC
l Red 10.2 620 250 MLBL-08BR 1SFA611621R2081 10 0.012
04
l Green 10.2 520 1500 MLBL-08BG 1SFA611621R2082 10 0.012
l Yellow 10.2 582 300 MLBL-08BY 1SFA611621R2083 10 0.012
l Blue 9.1 468 450 MLBL-08BL 1SFA611621R2084 10 0.012
l White 9.1 (2) 600 MLBL-08BW 1SFA611621R2085 10 0.012
Rated voltage 415 V AC
l Red 11.2 620 280 MLBL-09BR 1SFA611621R2091 10 0.012
l Green 11.2 520 1800 MLBL-09BG 1SFA611621R2092 10 0.012
l Yellow 11.2 588 350 MLBL-09BY 1SFA611621R2093 10 0.012
l Blue 9.9 468 500 MLBL-09BL 1SFA611621R2094 10 0.012
l White 9.9 (2) 650 MLBL-09BW 1SFA611621R2095 10 0.012
Note:
(1) Care should be taken for DC supply where + and - must be correctly connected. This is marked X1 (+) and X2 (-) on the product.
(2) X=0.31, Y=0.32 according to the ICI Chromaticity diagram.
For technical data, please refer to modular range section.

42 1.65"
23 0.91"

10 0.39"
40 1.57" 44 1.73"

10 0.39"

10 0.39"
44 1.73" 40 1.57"

10 0.39"
23 0.91"
47 1.85"
MLBL 1SFC151058S0201
Dimensions (mm, inches)
