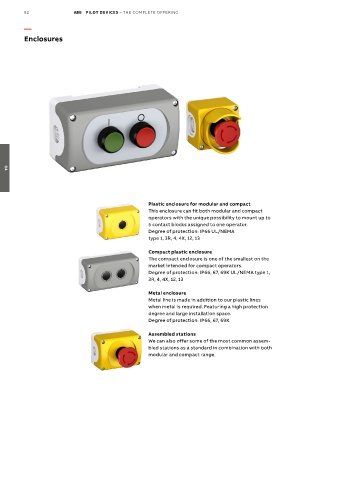

82 ABB PILOT DEVICES – THE COMPLETE OFFERING

—

Enclosures

04

Plastic enclosure for modular and compact
This enclosure can fit both modular and compact
operators with the unique possibility to mount up to
5 contact blocks assigned to one operator.
Degree of protection: IP66 UL/NEMA
type 1, 3R, 4, 4X, 12, 13
Compact plastic enclosure
The compact enclosure is one of the smallest on the
market intended for compact operators.
Degree of protection: IP66, 67, 69K UL/NEMA type 1,
3R, 4, 4X, 12, 13

Metal enclosure
Metal line is made in addition to our plastic lines
when metal is required. Featuring a high protection
degree and large installation space.
Degree of protection: IP66, 67, 69K
Assembled stations
We can also offer some of the most common assem-
bled stations as a standard in combination with both
modular and compact range.
