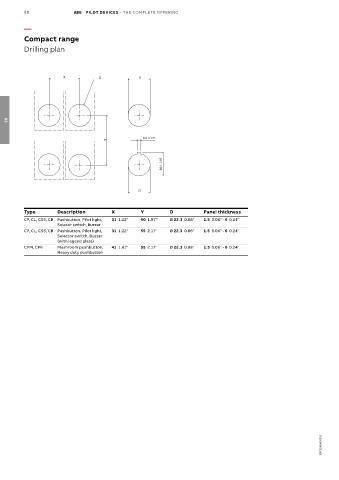

80 ABB PILOT DEVICES – THE COMPLETE OFFERING

—

Compact range
Drilling plan

X D D

03

3.2 0.13"
Y

24.1 0.95"

D

Type Description X Y D Panel thickness
CP, CL, CSS, CB Pushbutton, Pilot light, 31 1.22" 50 1.97" Ø 22.3 0.88" 1.5 0.06" - 6 0.24"
Selecor switch, Buzzer
CP, CL, CSS, CB Pushbutton, Pilot light, 31 1.22" 55 2.17" Ø 22.3 0.88" 1.5 0.06" - 6 0.24"
Selector switch, Buzzer
(with legend plate)
CPM, CP6 Mushroom pushbutton, 41 1.61" 55 2.17" Ø 22.3 0.88" 1.5 0.06" - 6 0.24"
Heavy duty pushbutton

1SFC151086S0201
