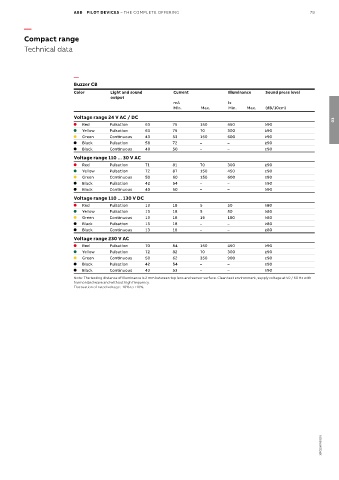

ABB PILOT DEVICES – THE COMPLETE OFFERING 79

—

Compact range
Technical data

—
Buzzer CB
Color Light and sound Current Illuminance Sound press level
output
mA lx
Min. Max. Min. Max. (dB/10cm)
Voltage range 24 V AC / DC
03
l Red Pulsation 63 75 150 450 ≥90
l Yellow Pulsation 63 75 70 300 ≥90
l Green Continuous 43 53 150 600 ≥90
l Black Pulsation 58 72 – – ≥90
l Black Continuous 40 50 – – ≥90
Voltage range 110 ... 30 V AC
l Red Pulsation 71 81 70 300 ≥90
l Yellow Pulsation 72 87 150 450 ≥90
l Green Continuous 50 60 150 600 ≥90
l Black Pulsation 42 54 – – ≥90
l Black Continuous 40 50 – – ≥90
Voltage range 110 ... 130 V DC
l Red Pulsation 13 18 5 50 ≥80
l Yellow Pulsation 13 18 5 50 ≥80
l Green Continuous 13 18 15 100 ≥80
l Black Pulsation 13 18 – – ≥80
l Black Continuous 13 18 – – ≥80
Voltage range 230 V AC
l Red Pulsation 70 84 150 450 ≥90
l Yellow Pulsation 72 82 70 300 ≥90
l Green Continuous 50 62 350 900 ≥90
l Black Pulsation 42 54 – – ≥90
l Black Continuous 43 53 – – ≥90
Note: The testing distance of illuminance is 2 mm between top lens and sensor surface. Clean test environment, supply voltage at 50 / 60 Hz with
harmonized wave and without high frequency.
Fluctuation of rated voltage: -10% to +10%.

1SFC151078S0201
