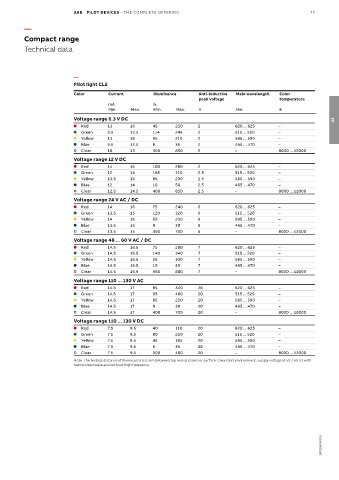

ABB PILOT DEVICES – THE COMPLETE OFFERING 77

—

Compact range
Technical data

—
Pilot light CL2
Color Current Illuminance Anti-inductive Main wavelength Color
peak voltage temperature
mA lx
Min. Max. Min. Max. V Nm K
Voltage range 6.3 V DC 03
l Red 13 16 45 250 2 620 ... 625 –
l Green 9.5 12.5 114 245 2 515 ... 520 –
l Yellow 13 16 65 210 2 585 ... 590 –
l Blue 9.5 12.5 8 35 2 465 ... 470 –
Clear 10 13 300 850 2 – 8000 ... 12000
Voltage range 12 V DC
l Red 14 16 100 280 2 620 ... 625 –
l Green 12 14 165 310 2.5 515 ... 520 –
l Yellow 13.5 16 85 230 2.5 585 ... 590 –
l Blue 12 14 10 50 2.5 465 ... 470 –
Clear 12.5 14.5 480 850 2.5 – 8000 ... 12000
Voltage range 24 V AC / DC
l Red 14 16 75 240 6 620 ... 625 –
l Green 13.5 15 120 320 6 515 ... 520 –
l Yellow 14 16 55 230 6 585 ... 590 –
l Blue 13.5 15 8 30 6 465 ... 470 –
Clear 13.5 15 450 700 6 – 8000 ... 12000
Voltage range 48 ... 60 V AC / DC
l Red 14.5 16.5 75 200 7 620 ... 625 –
l Green 14.5 16.5 140 340 7 515 ... 520 –
l Yellow 14.5 16.5 55 330 7 585 ... 590 –
l Blue 14.5 16.5 10 45 7 465 ... 470 –
Clear 14.5 16.5 550 800 7 – 8000 ... 12000
Voltage range 110 ... 130 V AC
l Red 14.5 17 85 340 20 620 ... 625 –
l Green 14.5 17 95 400 20 515 ... 520 –
l Yellow 14.5 17 85 250 20 585 ... 590 –
l Blue 14.5 17 8 30 20 465 ... 470 –
Clear 14.5 17 400 700 20 – 8000 ... 12000
Voltage range 110 ... 130 V DC
l Red 7.5 9.5 40 110 20 620 ... 625 –
l Green 7.5 9.5 80 250 20 515 ... 520 –
l Yellow 7.5 9.5 45 165 20 585 ... 590 –
l Blue 7.5 9.5 6 35 20 465 ... 470 –
Clear 7.5 9.5 300 400 20 – 8000 ... 12000
Note: The testing distance of illuminance is 2 mm between top lens and sensor surface. Clean test environment, supply voltage at 50 / 60 Hz with
harmonized wave and without high frequency.

1SFC151078S0201
