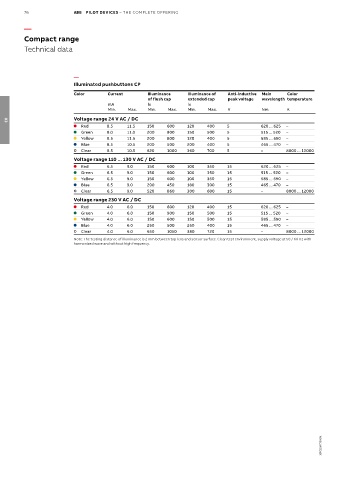

76 ABB PILOT DEVICES – THE COMPLETE OFFERING

—

Compact range
Technical data

—
Illuminated pushbuttons CP
Color Current Illuminance Illuminance of Anti-inductive Main Color
of flush cap extended cap peak voltage wavelength temperature
mA lx lx
Min. Max. Min. Max. Min. Max. V Nm K
Voltage range 24 V AC / DC
03
l Red 8.5 11.5 150 600 120 400 5 620 ... 625 –
l Green 8.0 11.0 200 800 150 500 5 515 ... 520 –
l Yellow 8.5 11.5 200 800 120 400 5 585 ... 590 –
l Blue 8.5 10.5 200 500 200 400 5 465 ... 470 –
Clear 8.5 10.5 620 1000 360 700 5 – 8000 ... 12000
Voltage range 110 ... 130 V AC / DC
l Red 6.5 9.0 150 600 100 350 15 620 ... 625 –
l Green 6.5 9.0 150 600 100 350 15 515 ... 520 –
l Yellow 6.5 9.0 150 600 100 350 15 585 ... 590 –
l Blue 6.5 9.0 200 450 180 300 15 465 ... 470 –
Clear 6.5 9.0 520 860 300 600 15 – 8000 ... 12000
Voltage range 230 V AC / DC
l Red 4.0 6.0 150 600 120 400 15 620 ... 625 –
l Green 4.0 6.0 150 900 150 500 15 515 ... 520 –
l Yellow 4.0 6.0 150 600 150 500 15 585 ... 590 –
l Blue 4.0 6.0 250 500 250 400 15 465 ... 470 –
Clear 4.0 6.0 650 1050 380 720 15 – 8000 ... 12000
Note: The testing distance of illuminance is 2 mm between top lens and sensor surface. Clean test environment, supply voltage at 50 / 60 Hz with
harmonized wave and without high frequency.

1SFC151077S0201
