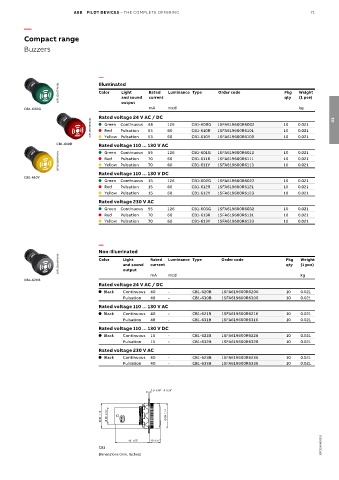

ABB PILOT DEVICES – THE COMPLETE OFFERING 71

—

Compact range
Buzzers

—
Illuminated
1SFC151157V0001 Color Light Rated Luminance Type Order code Pkg Weight
and sound
qty
(1 pce)
current
CB1-600G output mA mcd kg
Rated voltage 24 V AC / DC 03
1SFC151159V0001 l Green Continuous 48 126 CB1-600G 1SFA619600R6002 10 0.021
1SFA619600R6101
60
53
10
l Red
Pulsation
0.021
CB1-610R
CB1-610R l Yellow Pulsation 53 60 CB1-610Y 1SFA619600R6103 10 0.021
Rated voltage 110 ... 130 V AC
10
1SFA619600R6012
CB1-601G
0.021
l Green
126
55
Continuous
1SFC151158V0001 l Red Pulsation 70 60 CB1-611R 1SFA619600R6111 10 0.021
70
0.021
CB1-611Y
60
l Yellow Pulsation
10
1SFA619600R6113
Rated voltage 110 ... 130 V DC
CB1-610Y
l Green Continuous 15 126 CB1-602G 1SFA619600R6022 10 0.021
l Red Pulsation 15 60 CB1-612R 1SFA619600R6121 10 0.021
l Yellow Pulsation 15 60 CB1-612Y 1SFA619600R6123 10 0.021
Rated voltage 230 V AC
l Green Continuous 55 126 CB1-603G 1SFA619600R6032 10 0.021
l Red Pulsation 70 60 CB1-613R 1SFA619600R6131 10 0.021
l Yellow Pulsation 70 60 CB1-613Y 1SFA619600R6133 10 0.021
—
Non-Illuminated
1SFC151160V0001 Color Light Rated Luminance Type Order code Pkg Weight
(1 pce)
current
qty
and sound
output
mA mcd kg
CB1-620B
Rated voltage 24 V AC / DC
l Black Continuous 40 - CB1-620B 1SFA619600R6206 10 0.021
Pulsation 48 - CB1-630B 1SFA619600R6306 10 0.021
Rated voltage 110 ... 130 V AC
l Black Continuous 40 - CB1-621B 1SFA619600R6216 10 0.021
Pulsation 48 - CB1-631B 1SFA619600R6316 10 0.021
Rated voltage 110 ... 130 V DC
l Black Continuous 15 - CB1-622B 1SFA619600R6226 10 0.021
Pulsation 15 - CB1-632B 1SFA619600R6326 10 0.021
Rated voltage 230 V AC
l Black Continuous 40 - CB1-623B 1SFA619600R6236 10 0.021
Pulsation 40 - CB1-633B 1SFA619600R6336 10 0.021
1.5 0.06" - 6 0.24"

Ø 30 1.18" Ø 20 0.79" Ø 29 1.14"

42 1.65" 13 0.51"
CB1 1SFC151049S0201
Dimensions (mm, inches)
