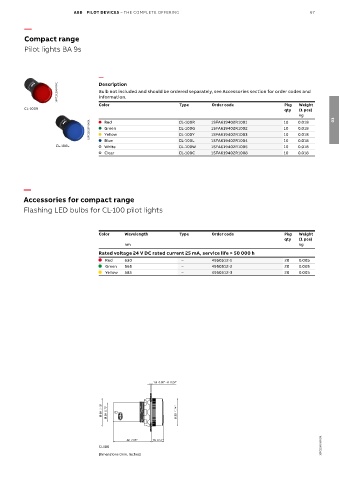

ABB PILOT DEVICES – THE COMPLETE OFFERING 67

—

Compact range
Pilot lights BA 9s

—
Description
1SFC151256V0001 Bulb not included and should be ordered separately, see Accessories section for order codes and
information.
Color Type Order code Pkg Weight
CL-100R qty (1 pce)
kg 03
1SFA619402R1001
CL-100R
0.018
10
l Red
1SFC151257V0001 l Green CL-100G 1SFA619402R1002 10 0.018
10
CL-100Y
1SFA619402R1003
0.018
l Yellow
l Blue CL-100L 1SFA619402R1004 10 0.018
CL-100L White CL-100W 1SFA619402R1005 10 0.018
Clear CL-100C 1SFA619402R1008 10 0.018
—

Accessories for compact range
Flashing LED bulbs for CL-100 pilot lights

Color Wavelength Type Order code Pkg Weight
qty (1 pce)
nm kg
Rated voltage 24 V DC rated current 25 mA, service life > 50 000 h
l Red 630 – 4950512-1 20 0.005
l Green 565 – 4950512-2 20 0.005
l Yellow 585 – 4950512-3 20 0.005

1.5 0.06" - 6 0.24"

Ø 30 1.18" Ø 20 0.79" Ø 29 1.14"

42 1.65" 13 0.51"
CL100 1SFC151051S0201
Dimensions (mm, inches)
