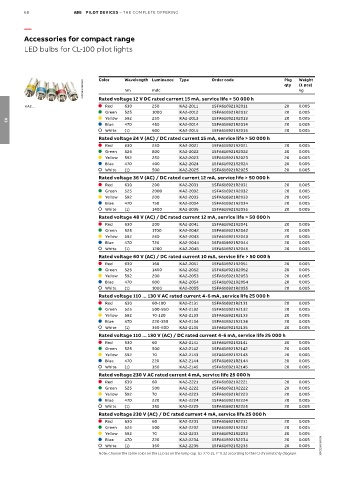

68 ABB PILOT DEVICES – THE COMPLETE OFFERING

—

Accessories for compact range
LED bulbs for CL-100 pilot lights

1SFC151178F0001 Color Wavelength Luminance Type Order code Pkg Weight
qty
(1 pce)
nm
kg
mdc
630
l Red
250
1SFA616921R2011
KA2-2011
KA2... Rated voltage 12 V DC rated current 15 mA, service life > 50 000 h 20 0.005
l Green 525 1000 KA2-2012 1SFA616921R2012 20 0.005
l Yellow 592 250 KA2-2013 1SFA616921R2013 20 0.005
l Blue 470 450 KA2-2014 1SFA616921R2014 20 0.005
03
l White (1) 600 KA2-2015 1SFA616921R2015 20 0.005
Rated voltage 24 V (AC) / DC rated current 15 mA, service life > 50 000 h
l Red 630 250 KA2-2021 1SFA616921R2021 20 0.005
l Green 525 800 KA2-2022 1SFA616921R2022 20 0.005
l Yellow 592 250 KA2-2023 1SFA616921R2023 20 0.005
l Blue 470 400 KA2-2024 1SFA616921R2024 20 0.005
l White (1) 500 KA2-2025 1SFA616921R2025 20 0.005
Rated voltage 36 V (AC) / DC rated current 12 mA, service life > 50 000 h
l Red 630 200 KA2-2031 1SFA616921R2031 20 0.005
l Green 525 2000 KA2-2032 1SFA616921R2032 20 0.005
l Yellow 592 200 KA2-2033 1SFA616921R2033 20 0.005
l Blue 470 750 KA2-2034 1SFA616921R2034 20 0.005
l White (1) 1400 KA2-2035 1SFA616921R2035 20 0.005
Rated voltage 48 V (AC) / DC rated current 12 mA, service life > 50 000 h
l Red 630 200 KA2-2041 1SFA616921R2041 20 0.005
l Green 525 1700 KA2-2042 1SFA616921R2042 20 0.005
l Yellow 592 240 KA2-2043 1SFA616921R2043 20 0.005
l Blue 470 720 KA2-2044 1SFA616921R2044 20 0.005
l White (1) 1200 KA2-2045 1SFA616921R2045 20 0.005
Rated voltage 60 V (AC) / DC rated current 10 mA, service life > 50 000 h
l Red 630 160 KA2-2051 1SFA616921R2051 20 0.005
l Green 525 1400 KA2-2052 1SFA616921R2052 20 0.005
l Yellow 592 200 KA2-2053 1SFA616921R2053 20 0.005
l Blue 470 600 KA2-2054 1SFA616921R2054 20 0.005
l White (1) 1000 KA2-2055 1SFA616921R2055 20 0.005
Rated voltage 110 ... 130 V AC rated current 4-6 mA, service life 25 000 h
l Red 630 60-100 KA2-2131 1SFA616921R2131 20 0.005
l Green 525 500-850 KA2-2132 1SFA616921R2132 20 0.005
l Yellow 592 70-120 KA2-2133 1SFA616921R2133 20 0.005
l Blue 470 220-350 KA2-2134 1SFA616921R2134 20 0.005
l White (1) 350-600 KA2-2135 1SFA616921R2135 20 0.005
Rated voltage 110 ... 130 V (AC) / DC rated current 4-6 mA, service life 25 000 h
l Red 630 60 KA2-2141 1SFA616921R2141 20 0.005
l Green 525 500 KA2-2142 1SFA616921R2142 20 0.005
l Yellow 592 70 KA2-2143 1SFA616921R2143 20 0.005
l Blue 470 220 KA2-2144 1SFA616921R2144 20 0.005
l White (1) 350 KA2-2145 1SFA616921R2145 20 0.005
Rated voltage 230 V AC rated current 4 mA, service life 25 000 h
l Red 630 60 KA2-2221 1SFA616921R2221 20 0.005
l Green 525 500 KA2-2222 1SFA616921R2222 20 0.005
l Yellow 592 70 KA2-2223 1SFA616921R2223 20 0.005
l Blue 470 220 KA2-2224 1SFA616921R2224 20 0.005
l White (1) 350 KA2-2225 1SFA616921R2225 20 0.005
Rated voltage 230 V (AC) / DC rated current 4 mA, service life 25 000 h
l Red 630 60 KA2-2231 1SFA616921R2231 20 0.005
l Green 525 500 KA2-2232 1SFA616921R2232 20 0.005
l Yellow 592 70 KA2-2233 1SFA616921R2233 20 0.005
l Blue 470 220 KA2-2234 1SFA616921R2234 20 0.005
l White (1) 350 KA2-2235 1SFA616921R2235 20 0.005 1SFC151051S0201
Note: Choose the same color on the LED as on the lamp cap. (1) X=0.31, Y=0.32 according to the ICI chromaticity diagram.
