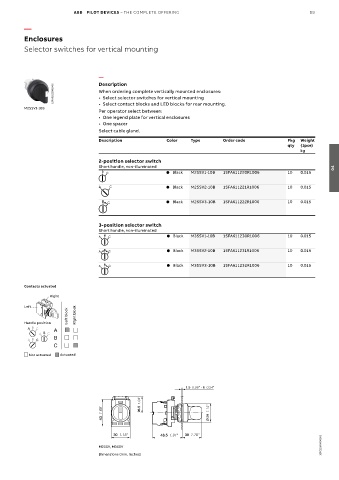

ABB PILOT DEVICES – THE COMPLETE OFFERING 89

—

Enclosures
Selector switches for vertical mounting

—
Description
1SFA611220R1006 When ordering complete vertically mounted enclosures:
• Select selector switches for vertical mounting
M2SSV1-10B • Select contact blocks and LED blocks for rear mounting.
Per operator select between:
• One legend plate for vertical enclosures
• One spacer
Select cable gland.
Description Color Type Order code Pkg Weight
qty (1pce)
kg

2-position selector switch
Short handle, non-illuminated 04
l Black M2SSV1-10B 1SFA611220R1006 10 0.015

l Black M2SSV2-10B 1SFA611221R1006 10 0.015

l Black M2SSV3-10B 1SFA611222R1006 10 0.015

3-position selector switch
Short handle, non-illuminated
l Black M3SSV1-10B 1SFA611230R1006 10 0.015

l Black M3SSV2-10B 1SFA611231R1006 10 0.015

l Black M3SSV3-10B 1SFA611232R1006 10 0.015

Contacts actuated
Right

Left
Left block Right block
Handle position

Not actuated Actuated

1.5 0.06" - 6 0.24"

26.5 1.04"
43 1.69" Ø 29 1.14"

30 1.18" 48.5 1.91" 30 1.18"
1SFC151060S0201
M2SSV, M3SSV
Dimensions (mm, inches)
