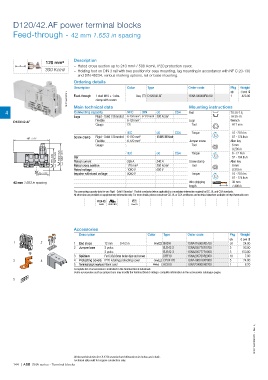

Page 146 - 1SNC160019C0203_SNA series - Terminal blocks
P. 146
D120/42.AF power terminal blocks
Feed-through - 42 mm 1.653 in spacing
Description
120 mm²
– Rated cross section up to 240 mm² / 500 Kcmil, IP20 protection cover,
300 Kcmil – Holding foot on DIN 3 rail with two position for easy mounting, lug mounting in accordance with NF C 20-130
and DIN 46234, various marking options, rail or base mounting.
Ordering details
Description Color Type Order code Pkg Weight
(1 pce) g
1SNC165019F0014 Feed-through 1 stud M10 + 1 wire- Grey D120/42.AF 1SNA190008R0700 1 423.00
qty
clamp with covers
Main technical data Mounting instructions
4 Connecting capacity NFC DIN UL CSA Rail TH 35-7.5,
Lugs Rigid - Solid / Stranded 6-150 mm² 6-120 mm² 300 Kcmil TH 35-15
D120/42.AF Flexible 6-120 mm² Lugs Wrench
Gauge C8 Tool H17 mm
IEC UL CSA Torque 10 - 20 N.m
Screw clamp Rigid - Solid / Stranded 6-150 mm² 10 AWG-300 Kcmil 87 - 174 lb.in
197 7.75"
Flexible 6-120 mm² Jumper screw Allen key
Gauge Tool 6 mm
0.236 in
6 - 12 N.m
UL
Torque
CSA
115 4.52" 107.5 4.23" 137.2 5.40" 129.7 5.10" Bar IEC 240 A Screw clamp Allen key
52 - 10 4 lb.in
Rated current
269 A
Rated cross section 120 mm² 300 Kcmil Tool 8 mm
Rated voltage 1000 V 600 V 0.315 in
70 2.75" Impulse withstand voltage 8000 V Torque 10 - 20 N.m
87 - 17 4 lb.in
42 mm 1.653 in spacing Wire stripping 38 mm
length 1.496 in
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CNR Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 12 mm 0.472 in Grey BADH 1SNA116900R2700 50 24.00
2 Jumper bars 2 poles BJS42-2 1SNA205776R1700 5 93.00
3 poles BJS42-3 1SNA205777R1000 5 153.00
3 Splitters For 6.35x0.8mm faston clips and screws DRF10 1SNA205769R2000 10 7.00
3 4 4 Protecting covers IP20 rotating protecting cover Grey CPUF120 1SNA190018R2000 5 24.00
5 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
5
1SNC165008S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
144 | ABB SNA series - Terminal blocks
