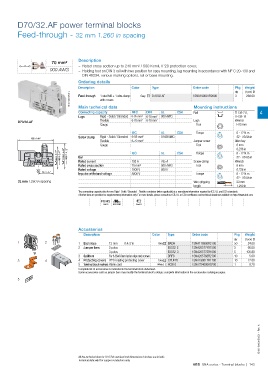

P. 145
D70/32.AF power terminal blocks
Feed-through - 32 mm 1.260 in spacing
Description
70 mm²
– Rated cross section up to 240 mm² / 500 Kcmil, IP20 protection cover,
000 AWG – Holding foot on DIN 3 rail with two position for easy mounting, lug mounting in accordance with NF C 20-130 and
DIN 46234, various marking options, rail or base mounting.
Ordering details
Description Color Type Order code Pkg Weight
(1 pce) g
1SNC165019F0014 Feed-through 1 stud M8 + 1 wire-clamp Grey D70/32.AF 1SNA190007R2600 3 269.00
qty
with covers
Main technical data Mounting instructions
Connecting capacity NFC DIN UL CSA Rail TH 35-7.5, 4
Lugs Rigid - Solid / Stranded 6-95 mm² 6-70 mm² 000 AWG TH 35-15
D70/32.AF Flexible 6-70 mm² 6-70 mm² Lugs Wrench
Gauge Tool H13 mm
IEC UL CSA Torque 6 - 12 N.m
Screw clamp Rigid - Solid / Stranded 6-95 mm² 10-000 AWG 52 - 104 lb.in
165 6.49"
Flexible 6-70 mm² Jumper screw Allen key
Gauge Tool 6 mm
0.236 in
95.8 3.77" 88.3 3.47" 113.2 4.45" 105.7 4.16" Bar IEC UL CSA Torque 6 - 12 N.m
52 - 10 4 lb.in
Rated current 192 A 165 A Screw clamp Wrench
Rated cross section 70 mm² 000 AWG Tool 6 mm
Rated voltage 1000 V 600 V 0.236 in
70 2.75"
Impulse withstand voltage 8000 V Torque 6 - 12 N.m
52 - 10 4 lb.in
32 mm 1.260 in spacing Wire stripping 33 mm
length 1.299 in
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CNR Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 12 mm 0.472 in Grey BADH 1SNA116900R2700 50 24.00
2 Jumper bars 2 poles BJS32-2 1SNA205774R1500 5 66.00
3 poles BJS32-3 1SNA205775R1600 5 105.80
3 Splitters For 6.35x0.8mm faston clips and screws DRF8 1SNA205768R2700 10 5.00
3 4 4 Protecting covers IP20 rotating protecting cover Grey CPUF70 1SNA190017R1700 10 12.00
5 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
5
1SNC165007S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 143
