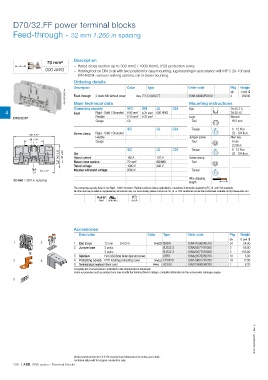

P. 140
D70/32.FF power terminal blocks
Feed-through - 32 mm 1.260 in spacing
Description
70 mm²
– Rated cross section up to 300 mm2 / 1000 Kcmil, IP20 protection cover,
000 AWG – Holding foot on DIN 3 rail with two position for easy mounting, lug mounting in accordance with NF C 20-130 and
DIN 46234, various marking options, rail or base mounting.
Ordering details
Description Color Type Order code Pkg Weight
1SNC165009F0014 Feed-through 2 studs M8 without cover Grey D70/32.FF 1SNA190002R2100 3 269.00
(1 pce) g
qty
Main technical data
Connecting capacity NFC DIN UL CSA Mounting instructions
Rail
TH 35-7.5,
4 Lugs Rigid - Solid / Stranded 6-95 mm² 6-70 mm² 000 AWG TH 35-15
D70/32.FF Flexible 6-70 mm² 6-70 mm² Lugs Wrench
Gauge C6 Tool H13 mm
IEC UL CSA Torque 6 - 12 N.m
Screw clamp Rigid - Solid / Stranded 52 - 104 lb.in
140 5.51"
Flexible Jumper screw Allen key
56 2.20"
= = Gauge Tool 6 mm
0.236 in
UL
CSA
Torque
74.5 2.93" 67 2.64" Bar IEC 170 A Screw clamp 6 - 12 N.m
52 - 10 4 lb.in
Rated current
192 A
Rated cross section 70 mm² 000 AWG Tool
Rated voltage 1000 V 600 V
70 2.76" Impulse withstand voltage 8000 V Torque
Wire stripping
32 mm 1.260 in spacing
length
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CNR Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 12 mm 0.472 in Grey BADH 1SNA116900R2700 50 24.00
2 Jumper bars 2 poles BJS32-2 1SNA205774R1500 5 66.00
3 poles BJS32-3 1SNA205775R1600 5 105.80
3 Splitters For 6.35x0.8mm faston clips and screws DRF8 1SNA205768R2700 10 5.00
3 4 4 Protecting covers IP20 rotating protecting cover Grey CPUF70 1SNA190017R1700 10 12.00
5 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
5
1SNC165005S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
138 | ABB SNA series - Terminal blocks
