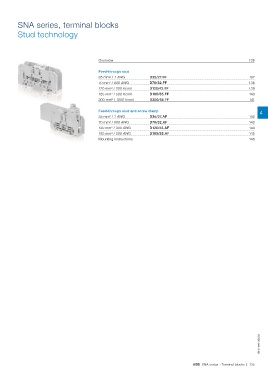

SNA series, terminal blocks
Stud technology
Overview 136
Feed-through stud
35 mm² / 1 A WG D35/27.FF 137
70 mm² / 000 AWG D70/32.FF 138
120 mm² / 300 Kcmil D120/42.FF 139
185 mm² / 500 Kcmil D185/55.FF 140
300 mm² / 1000 Kcmil D300/55.FF 141
Feed-through stud and screw clamp 4
35 mm² / 1 A WG D35/27.AF 142
70 mm² / 000 AWG D70/32.AF 143
120 mm² / 300 AWG D120/42.AF 144
185 mm² / 500 AWG D185/55.AF 145
Mounting instructions 146
1SNC165013S0201
ABB SNA series - Terminal blocks | 135
