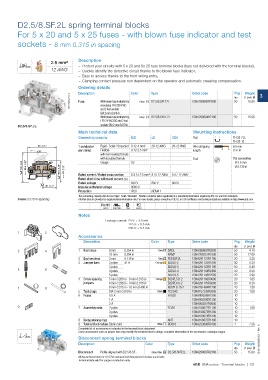

Page 133 - 1SNC160019C0203_SNA series - Terminal blocks
P. 133
D2.5/8.SF.2L spring terminal blocks
For 5 x 20 and 5 x 25 fuses - with blown fuse indicator and test
sockets - 8 mm 0.315 in spacing
Description
2.5 mm²
– Protect your circuits with 5 x 20 and 5x 25 fuse terminal blocks (fuse not delivered with the terminal blocks),
12 AWG – Quickly identify the defective circuit thanks to the blown fuse indicator,
– Easy to access thanks to the front wiring entry,
– Clamping contact pressure non dependent on the operator and automatic creeping compensation.
Ordering details Color Type Order code Pkg Weight
Description
1SNC162024F0014 Fuse With blown fuse indicator by Grey D2.5/8.SFLT.2L 1SNA290093R2000 qty (1 pce) g 3
15.00
50
neon lamp 110-230 V AC
and 2 test sockets
DIA 2 mm 0.079 in
With blown fuse indicator by Grey D2.5/8.SFDT.2L 1SNA290094R2100 50 15.00
LED 24 VAC/DC and 2 test
D2.5/8.SF.2L sockets DIA 2 mm 0.079 in
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail TH 35-7.5,
TH 35-15
80 3.15" 1 conductor Rigid - Solid / Stranded 0.12-4 mm² 26-12 AWG 26-12 AWG Wire stripping 9.5 mm
per clamp Flexible 0.12-2.5 mm² length 0.37 in
130°
with non insulated ferrule
with insulated ferrule Tool Flat screwdriver
101 3.98" 93.5 3.68" 60.5 2.38" 53 2.09" Gauge A2 Ø 3.5 mm
Ø 0.138 in
Rated current / Rated cross section 6.3 A / 2.5 mm² 8 A / 12 AWG 8 A / 12 AWG
Rated short-time withstand current (1s)
Rated voltage 630 V 600 V 600 V
40 1.57" Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
8 mm 0.315 in spacing All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CNR CSA Gost R
Notes
Leakage current: 24 V: < 4.5 mA
110 V: < 0.5 mA
230 V: < 0.7 mA
1 2
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
3 4 1 End stops 9 mm 0.354 in Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 3 mm 0.118 in Grey FED8SF.2L 1SNA291131R1700 20 3.50
3 Jumper bars 2 poles 41 A Orange BJDL8-2 1SNA291122R1600 50 0.20
3 poles BJDL8-3 1SNA291123R1700 50 0.40
5 6 4 poles BJDL8-4 1SNA291144R2400 50 0.50
5 poles BJDL8-5 1SNA291145R2500 20 3.90
4 Cross spacing 5 mm 0.200 in - 8 mm 0.315 in Orange BJDPL5.8-2 1SNA291160R0000 20 1.65
jumpers 6 mm 0.236 in - 8 mm 0.315 in BJDPL6.8-2 1SNA291170R0200 20 0.20
7 8 8 mm 0.315 in - 10 mm 0.400 in BJDPL8.10-2 1SNA291484R1200 20 1.50
5 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
6 Fuses 0.5 A FU520 1SNA008288R1500 10
1 A 1SNA008290R1300 10
2 A 1SNA008291R0000 10
9 7 Assembly rods 2 poles TGA8 1SNA168672R1100 10 1.00
3 poles 1SNA168673R1200 10
4 poles 1SNA168674R1300 10
8 Spring retaining rings ANT 1SNA168675R1400 10
9 Terminal block markersBlank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
Disconnect spring terminal blocks 1SNC162082S0201 - Rev. A
Description Color Type Order code Pkg Weight
qty (1 pce) g
Disconnect Profile aligned with D2.5/8.SF.. Grey, blue D2.5/8.SNT.2L 1SNA290097R2400 50 15.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 131
