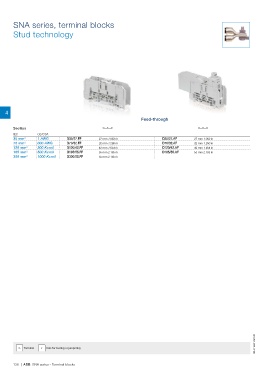

Page 138 - 1SNC160019C0203_SNA series - Terminal blocks
P. 138
SNA series, terminal blocks
Stud technology
4
Feed-through
Section
IEC UL/CSA
35 mm² 1 AWG D35/27.FF 27 mm 1.063 in D35/27.AF 27 mm 1.063 in
70 mm² 000 AWG D70/32.FF 32 mm 1.260 in D70/32.AF 32 mm 1.260 in
120 mm² 300 Kcmil D120/42.FF 42 mm 1.654 in D120/42.AF 42 mm 1.654 in
185 mm² 500 Kcmil D185/55.FF 55 mm 2.165 in D185/55.AF 55 mm 2.165 in
300 mm² 1000 Kcmil D300/55.FF 55 mm 2.165 in
1SNC165012S0201
Terminal - Hole for testing or jumpering
136 | ABB SNA series - Terminal blocks
