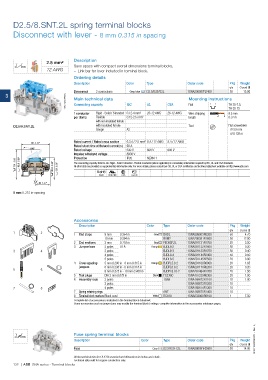

Page 134 - 1SNC160019C0203_SNA series - Terminal blocks
P. 134
D2.5/8.SNT.2L spring terminal blocks
Disconnect with lever - 8 mm 0.315 in spacing
Description
2.5 mm²
Save space with compact overall dimensions terminal blocks,
12 AWG – Link bar for lever included in terminal block.
Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Disconnect 2 connections Grey, blue D2.5/8.SNT.2L 1SNA290097R2400 50 15.00
1SNC162107F0014 Main technical data IEC UL CSA Mounting instructions
3
Rail
TH 35-7.5,
Connecting capacity
9.5 mm
1 conductor Rigid - Solid / Stranded 0.12-4 mm² 26-12 AWG 26-12 AWG Wire stripping TH 35-15
per clamp Flexible 0.12-2.5 mm² length 0.37 in
with non insulated ferrule
D2.5/8.SNT.2L with insulated ferrule Tool Flat screwdriver
Gauge A2 Ø 3.5 mm
Ø 0.138 in
Rated current / Rated cross section 6.3 A / 2.5 mm² 8 A / 12 AWG 8 A / 12 AWG
80 3.15"
Rated short-time withstand current (1s) 90 A
130° 600 V 600 V
Rated voltage 630 V
Impulse withstand voltage 8000 V NEMA 1
101 3.98" 93.5 3.68" 60.5 2.38" 53 2.09" Protection IP20
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CNR CSA Gost R
40 1.57"
8 mm 0.315 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 9 mm 0.354 in Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 3 mm 0.118 in Grey FED8SF.2L 1SNA291131R1700 20 3.50
3 Jumper bars 2 poles 41 A Orange BJDL8-2 1SNA291122R1600 50 0.20
3 4 3 poles BJDL8-3 1SNA291123R1700 50 0.40
4 poles BJDL8-4 1SNA291144R2400 50 0.50
5 poles BJDL8-5 1SNA291145R2500 20 3.90
4 Cross spacing 5 mm 0.200 in - 8 mm 0.315 in Orange BJDPL5.8-2 1SNA291160R0000 20 1.65
jumpers 6 mm 0.236 in - 8 mm 0.315 in BJDPL6.8-2 1SNA291170R0200 20 0.20
5 6 8 mm 0.315 in - 10 mm 0.400 in BJDPL8.10-2 1SNA291484R1200 20 1.50
5 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
6 Assembly rods 2 poles TGA8 1SNA168672R1100 10 1.00
3 poles 1SNA168673R1200 10
7 8 4 poles 1SNA168674R1300 10
7 Spring retaining rings ANT 1SNA168675R1400 10
8 Terminal block markersBlank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162083S0201 - Rev. A
Fuse spring terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Fuse Grey D2.5/8.SFT.2L 1SNA290091R2600 50 14.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
132 | ABB SNA series - Terminal blocks
