Page 131 - 1SNC160019C0203_SNA series - Terminal blocks
P. 131

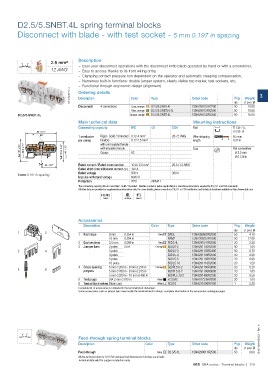

D2.5/5.SNBT.4L spring terminal blocks
Disconnect with blade - with test socket - 0.197 in spacing
5 mm
Description
2.5 mm²
– Ease your disconnect operations with the disconnect knife blade operated by hand or with a screwdriver,
12 AWG – Easy to access thanks to its front wiring entry,
– Clamping contact pressure non dependent on the operator and automatic creeping compensation,
– Numerous built-in functions: double jumper system, clearly visible top marker, test sockets, etc,
– Functional through ergonomic design (alignment).
1SNC162064F0014 Ordering details Color Type Order code Pkg Weight 3
Description
Disconnect 4 connections Grey, orange D2.5/5.SNBT.4L 1SNA290131R2200 qty (1 pce) g
10.00
50
Blue, orange D2.5/5.SNBT.N.4L 1SNA290134R2500 50 10.00
D2.5/5.SNBT.4L Orange, orange D2.5/5.SNBT.4L 1SNA290132R2300 50 10.00
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail TH 35-7.5,
80 3.15" TH 35-15
90° 26-12 AWG
1 conductor Rigid - Solid / Stranded 0.12-4 mm² Wire stripping 9.5 mm
per clamp Flexible 0.12-2.5 mm² length 0.37 in
61 2.40" 53.5 2.11" 51.5 2.03" 44 1.73" with non insulated ferrule Tool Flat screwdriver
with insulated ferrule
Gauge
Ø 3.5 mm
A2
Ø 0.138 in
40 1.57" Rated current / Rated cross section 10 A / 2.5 mm² 20 A / 12 AWG
Rated short-time withstand current (1s) 120 A
5 mm 0.197 in spacing Rated voltage 500 V 300 V
Impulse withstand voltage 6000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
CUS
RoHS cCSAus Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 9 mm 0.354 in Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 2.5 mm 0.098 in Grey FED5.4L 1SNA291041R2000 20 2.20
3 Jumper bars 2 poles 24 A Orange BJDL5-2 1SNA291102R2300 50 1.00
3 4 3 poles BJDL5-3 1SNA291103R2400 50 0.70
4 poles BJDL5-4 1SNA291104R2500 50 0.80
5 poles BJDL5-5 1SNA291105R2600 20 0.90
10 poles BJDL5-10 1SNA291110R2600 20 1.20
4 Cross spacing 5 mm 0.200 in - 6 mm 0.236 in Orange BJDPL5.6-2 1SNA291150R0600 20 0.20
5 6 jumpers 5 mm 0.200 in - 8 mm 0.315 in BJDPL5.8-2 1SNA291160R0000 20 1.65
5 mm 0.200 in - 10 mm 0.400 in BJDPL5.10-2 1SNA291480R2200 20 0.50
5 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
6 Terminal block markersBlank card White RC510 1SNA231000R0700 1 5.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162076S0201 - Rev. A
Feed-through spring terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through Grey D2.5/5.4L 1SNA290011R2500 50 8.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 129
Disconnect with blade - with test socket - 0.197 in spacing
5 mm
Description
2.5 mm²
– Ease your disconnect operations with the disconnect knife blade operated by hand or with a screwdriver,
12 AWG – Easy to access thanks to its front wiring entry,
– Clamping contact pressure non dependent on the operator and automatic creeping compensation,
– Numerous built-in functions: double jumper system, clearly visible top marker, test sockets, etc,
– Functional through ergonomic design (alignment).
1SNC162064F0014 Ordering details Color Type Order code Pkg Weight 3
Description
Disconnect 4 connections Grey, orange D2.5/5.SNBT.4L 1SNA290131R2200 qty (1 pce) g
10.00
50
Blue, orange D2.5/5.SNBT.N.4L 1SNA290134R2500 50 10.00
D2.5/5.SNBT.4L Orange, orange D2.5/5.SNBT.4L 1SNA290132R2300 50 10.00
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail TH 35-7.5,
80 3.15" TH 35-15
90° 26-12 AWG
1 conductor Rigid - Solid / Stranded 0.12-4 mm² Wire stripping 9.5 mm
per clamp Flexible 0.12-2.5 mm² length 0.37 in
61 2.40" 53.5 2.11" 51.5 2.03" 44 1.73" with non insulated ferrule Tool Flat screwdriver
with insulated ferrule
Gauge
Ø 3.5 mm
A2
Ø 0.138 in
40 1.57" Rated current / Rated cross section 10 A / 2.5 mm² 20 A / 12 AWG
Rated short-time withstand current (1s) 120 A
5 mm 0.197 in spacing Rated voltage 500 V 300 V
Impulse withstand voltage 6000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
CUS
RoHS cCSAus Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 9 mm 0.354 in Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 2.5 mm 0.098 in Grey FED5.4L 1SNA291041R2000 20 2.20
3 Jumper bars 2 poles 24 A Orange BJDL5-2 1SNA291102R2300 50 1.00
3 4 3 poles BJDL5-3 1SNA291103R2400 50 0.70
4 poles BJDL5-4 1SNA291104R2500 50 0.80
5 poles BJDL5-5 1SNA291105R2600 20 0.90
10 poles BJDL5-10 1SNA291110R2600 20 1.20
4 Cross spacing 5 mm 0.200 in - 6 mm 0.236 in Orange BJDPL5.6-2 1SNA291150R0600 20 0.20
5 6 jumpers 5 mm 0.200 in - 8 mm 0.315 in BJDPL5.8-2 1SNA291160R0000 20 1.65
5 mm 0.200 in - 10 mm 0.400 in BJDPL5.10-2 1SNA291480R2200 20 0.50
5 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
6 Terminal block markersBlank card White RC510 1SNA231000R0700 1 5.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162076S0201 - Rev. A
Feed-through spring terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through Grey D2.5/5.4L 1SNA290011R2500 50 8.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 129
