Page 132 - 1SNC160019C0203_SNA series - Terminal blocks

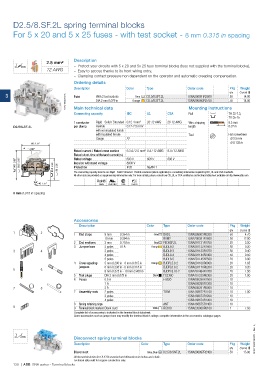

P. 132
D2.5/8.SF.2L spring terminal blocks
For 5 x 20 and 5 x 25 fuses - with test socket - 8 mm 0.315 in spacing
Description
2.5 mm²
– Protect your circuits with 5 x 20 and 5x 25 fuse terminal blocks (fuse not supplied with the terminal blocks),
12 AWG – Easy to access thanks to its front wiring entry,
– Clamping contact pressure non dependent on the operator and automatic creeping compensation.
Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
1SNC162024F0014 DIA 2 mm 0.079 in Orange D2.5/8.SFT.2L 1SNA290092R2700 50 14.00
3 Fuse With 2 test sockets Grey D2.5/8.SFT.2L 1SNA290091R2600 50 14.00
Main technical data
Rail
TH 35-7.5,
Connecting capacity IEC UL CSA Mounting instructions
TH 35-15
1 conductor Rigid - Solid / Stranded 0.12-4 mm² 26-12 AWG 26-12 AWG Wire stripping 9.5 mm
D2.5/8.SF.2L per clamp Flexible 0.12-2.5 mm² length 0.37 in
with non insulated ferrule
with insulated ferrule Tool Flat screwdriver
Gauge A2 Ø 3.5 mm
Ø 0.138 in
80 3.15"
130°
Rated current / Rated cross section 6.3 A / 2.5 mm² 8 A / 12 AWG 8 A / 12 AWG
Rated short-time withstand current (1s) 600 V 600 V
101 3.98" 93.5 3.68" 60.5 2.38" 53 2.09" Rated voltage 630 V NEMA 1
Impulse withstand voltage
8000 V
IP20
Protection
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
40 1.57" RoHS USR CNR CSA Gost R
8 mm 0.315 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 9 mm 0.354 in Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 3 mm 0.118 in Grey FED8SF.2L 1SNA291131R1700 20 3.50
3 Jumper bars 2 poles 41 A Orange BJDL8-2 1SNA291122R1600 50 0.20
3 4 3 poles BJDL8-3 1SNA291123R1700 50 0.40
4 poles BJDL8-4 1SNA291144R2400 50 0.50
5 poles BJDL8-5 1SNA291145R2500 20 3.90
4 Cross spacing 5 mm 0.200 in - 8 mm 0.315 in Orange BJDPL5.8-2 1SNA291160R0000 20 1.65
jumpers 6 mm 0.236 in - 8 mm 0.315 in BJDPL6.8-2 1SNA291170R0200 20 0.20
5 6 8 mm 0.315 in - 10 mm 0.400 in BJDPL8.10-2 1SNA291484R1200 20 1.50
5 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
6 Fuses 0.5 A FU520 1SNA008288R1500 10
1 A 1SNA008290R1300 10
7 8 2 A 1SNA008291R0000 10
7 Assembly rods 2 poles TGA8 1SNA168672R1100 10 1.00
3 poles 1SNA168673R1200 10
4 poles 1SNA168674R1300 10
8 Spring retaining rings ANT 1SNA168675R1400 10
9 9 Terminal block markersBlank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162081S0201 - Rev. A
Disconnect spring terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Disconnect Grey, blue D2.5/8.SNT.2L 1SNA290097R2400 50 15.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
130 | ABB SNA series - Terminal blocks
For 5 x 20 and 5 x 25 fuses - with test socket - 8 mm 0.315 in spacing
Description
2.5 mm²
– Protect your circuits with 5 x 20 and 5x 25 fuse terminal blocks (fuse not supplied with the terminal blocks),
12 AWG – Easy to access thanks to its front wiring entry,
– Clamping contact pressure non dependent on the operator and automatic creeping compensation.
Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
1SNC162024F0014 DIA 2 mm 0.079 in Orange D2.5/8.SFT.2L 1SNA290092R2700 50 14.00
3 Fuse With 2 test sockets Grey D2.5/8.SFT.2L 1SNA290091R2600 50 14.00
Main technical data
Rail
TH 35-7.5,
Connecting capacity IEC UL CSA Mounting instructions
TH 35-15
1 conductor Rigid - Solid / Stranded 0.12-4 mm² 26-12 AWG 26-12 AWG Wire stripping 9.5 mm
D2.5/8.SF.2L per clamp Flexible 0.12-2.5 mm² length 0.37 in
with non insulated ferrule
with insulated ferrule Tool Flat screwdriver
Gauge A2 Ø 3.5 mm
Ø 0.138 in
80 3.15"
130°
Rated current / Rated cross section 6.3 A / 2.5 mm² 8 A / 12 AWG 8 A / 12 AWG
Rated short-time withstand current (1s) 600 V 600 V
101 3.98" 93.5 3.68" 60.5 2.38" 53 2.09" Rated voltage 630 V NEMA 1
Impulse withstand voltage
8000 V
IP20
Protection
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
40 1.57" RoHS USR CNR CSA Gost R
8 mm 0.315 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 9 mm 0.354 in Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 3 mm 0.118 in Grey FED8SF.2L 1SNA291131R1700 20 3.50
3 Jumper bars 2 poles 41 A Orange BJDL8-2 1SNA291122R1600 50 0.20
3 4 3 poles BJDL8-3 1SNA291123R1700 50 0.40
4 poles BJDL8-4 1SNA291144R2400 50 0.50
5 poles BJDL8-5 1SNA291145R2500 20 3.90
4 Cross spacing 5 mm 0.200 in - 8 mm 0.315 in Orange BJDPL5.8-2 1SNA291160R0000 20 1.65
jumpers 6 mm 0.236 in - 8 mm 0.315 in BJDPL6.8-2 1SNA291170R0200 20 0.20
5 6 8 mm 0.315 in - 10 mm 0.400 in BJDPL8.10-2 1SNA291484R1200 20 1.50
5 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
6 Fuses 0.5 A FU520 1SNA008288R1500 10
1 A 1SNA008290R1300 10
7 8 2 A 1SNA008291R0000 10
7 Assembly rods 2 poles TGA8 1SNA168672R1100 10 1.00
3 poles 1SNA168673R1200 10
4 poles 1SNA168674R1300 10
8 Spring retaining rings ANT 1SNA168675R1400 10
9 9 Terminal block markersBlank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162081S0201 - Rev. A
Disconnect spring terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Disconnect Grey, blue D2.5/8.SNT.2L 1SNA290097R2400 50 15.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
130 | ABB SNA series - Terminal blocks
