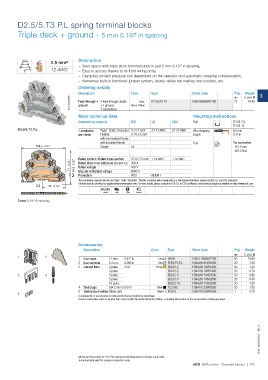

D2.5/5.T3.P.L spring terminal blocks
Triple deck + ground - 5 mm 0.197 in spacing
Description
2.5 mm²
– Save space with triple deck terminal block in just 5 mm 0.197 in spacing,
12 AWG – Easy to access thanks to its front wiring entry,
– Clamping contact pressure non dependent on the operator and automatic creeping compensation,
– Numerous built-in functions: jumper system, clearly visible top marker, test sockets, etc.
Ordering details
Weight
Description Color Type Order code Pkg (1 pce) g 3
1SNC162059F0014 Feed-through + 3 feed-through circuits Green-Yellow D2.5/5.T3.P.L 1SNA290458R1200 25 24.40
qty
Grey,
+ 1 ground,
ground
7 connections
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail TH 35-7.5,
TH 35-15
D2.5/5.T3.P.L 24-14 AWG 24-14 AWG
1 conductor Rigid - Solid / Stranded 0.14-4 mm² Wire stripping 9.5 mm
per clamp Flexible 0.14-2.5 mm² length 0.37 in
with non insulated ferrule
with insulated ferrule Tool Flat screwdriver
Gauge A2 Ø 3.5 mm
Ø 0.138 in
Rated current / Rated cross section 20 A / 2.5 mm² / 14 AWG / 14 AWG
Rated short-time withstand current (1s) 300 A
Rated voltage 500 V
Impulse withstand voltage 6000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CSA Gost R
5 mm 0.197 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.472 in
1 End stops 12 mm Grey BADH 1SNA116900R2700 50 24.00
2 End sections 2.5 mm 0.098 in Grey FED5.T3.P.L 1SNA291818R2000 20 7.20
3 Jumper bars 2 poles 24 A Orange BJDL5-2 1SNA291102R2300 50 1.00
3 poles BJDL5-3 1SNA291103R2400 50 0.70
3 4 4 poles BJDL5-4 1SNA291104R2500 50 0.80
5 poles BJDL5-5 1SNA291105R2600 20 0.90
10 poles BJDL5-10 1SNA291110R2600 20 1.20
4 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
5 Terminal block markersBlank card White RC510 1SNA231000R0700 1 5.20
5
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162025S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
