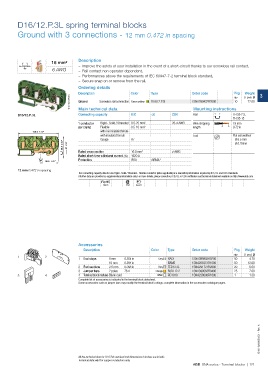

Page 123 - 1SNC160019C0203_SNA series - Terminal blocks
P. 123
D16/12.P.3L spring terminal blocks
Ground with 3 connections - 12 mm 0.472 in spacing
Description
16 mm²
– Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact,
6 AWG – Rail contact non operator dependent,
– Performances above the requirements of IEC 60947-7-2 terminal block standard,
– Secure snap on or remove from the rail.
Ordering details Color Type Order code Pkg Weight
Description
1SNC162106F0014 Ground Screwless rail connection Green-yellow D16/12.P.3L 1SNA290432R2000 qty (1 pce) g 3
72.00
10
Rail
TH 35-7.5,
Connecting capacity
D16/12.P.3L Main technical data IEC UL CSA Mounting instructions
TH 35-15
1 conductor Rigid - Solid / Stranded 0.5-25 mm² 20-4 AWG Wire stripping 19 mm
per clamp Flexible 0.5-16 mm² length 0.72 in
106.5 4.19" with non insulated ferrule
with insulated ferrule Tool Flat screwdriver
Gauge A7 Ø 6.5 mm
58.5 2.30" 51 2.01" Ø 0.256 in
Rated cross section 16.0 mm² 4 AWG
Rated short-time withstand current (1s) 1920 A
Protection IP20 NEMA1
36.5 1.43"
12 mm 0.472 in spacing
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS CSA Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.354 in
1 End stops 9 mm Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 2.5 mm 0.098 in Grey FED12.3L 1SNA291721R2600 20 5.50
3 Jumper bars 2 poles 76 A Orange BJDL12-2 1SNA399563R0400 25 7.00
3 4 4 Terminal block markersBlank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162069S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 121
Ground with 3 connections - 12 mm 0.472 in spacing
Description
16 mm²
– Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact,
6 AWG – Rail contact non operator dependent,
– Performances above the requirements of IEC 60947-7-2 terminal block standard,
– Secure snap on or remove from the rail.
Ordering details Color Type Order code Pkg Weight
Description
1SNC162106F0014 Ground Screwless rail connection Green-yellow D16/12.P.3L 1SNA290432R2000 qty (1 pce) g 3
72.00
10
Rail
TH 35-7.5,
Connecting capacity
D16/12.P.3L Main technical data IEC UL CSA Mounting instructions
TH 35-15
1 conductor Rigid - Solid / Stranded 0.5-25 mm² 20-4 AWG Wire stripping 19 mm
per clamp Flexible 0.5-16 mm² length 0.72 in
106.5 4.19" with non insulated ferrule
with insulated ferrule Tool Flat screwdriver
Gauge A7 Ø 6.5 mm
58.5 2.30" 51 2.01" Ø 0.256 in
Rated cross section 16.0 mm² 4 AWG
Rated short-time withstand current (1s) 1920 A
Protection IP20 NEMA1
36.5 1.43"
12 mm 0.472 in spacing
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS CSA Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.354 in
1 End stops 9 mm Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 2.5 mm 0.098 in Grey FED12.3L 1SNA291721R2600 20 5.50
3 Jumper bars 2 poles 76 A Orange BJDL12-2 1SNA399563R0400 25 7.00
3 4 4 Terminal block markersBlank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162069S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 121
