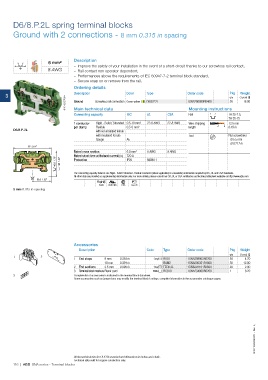

P. 118
D6/8.P.2L spring terminal blocks
Ground with 2 connections - 8 mm 0.315 in spacing
Description
6 mm²
– Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact,
8 AWG – Rail contact non operator dependent,
– Performances above the requirements of IEC 60947-7-2 terminal block standard,
– Secure snap on or remove from the rail.
Ordering details
Description Color Type Order code Pkg Weight
3 qty (1 pce) g
1SNC162020F0014 Ground Screwless rail connection Green-yellow D6/8.P.2L 1SNA290089R0400 50 16.00
Main technical data
Rail
Connecting capacity IEC UL CSA Mounting instructions
TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 0.5-10 mm² 22-8 AWG 22-8 AWG Wire stripping 12.5 mm
per clamp Flexible 0.5-6 mm² length 0.49 in
D6/8.P.2L with non insulated ferrule
with insulated ferrule Tool Flat screwdriver
Gauge A5 Ø 5.5 mm
Ø 0.217 in
67 2.64"
Rated cross section 6.0 mm² 8 AWG 8 AWG
Rated short-time withstand current (1s) 720 A
45.5 1.79" 38 1.50" Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
33.3 1.32"
RoHS USR CNR CSA Gost R
8 mm 0.315 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.354 in
1 End stops 9 mm Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 2.5 mm 0.098 in Grey FED8.2L 1SNA291161R2500 20 2.00
3 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
3 Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162063S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
116 | ABB SNA series - Terminal blocks
Ground with 2 connections - 8 mm 0.315 in spacing
Description
6 mm²
– Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact,
8 AWG – Rail contact non operator dependent,
– Performances above the requirements of IEC 60947-7-2 terminal block standard,
– Secure snap on or remove from the rail.
Ordering details
Description Color Type Order code Pkg Weight
3 qty (1 pce) g
1SNC162020F0014 Ground Screwless rail connection Green-yellow D6/8.P.2L 1SNA290089R0400 50 16.00
Main technical data
Rail
Connecting capacity IEC UL CSA Mounting instructions
TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 0.5-10 mm² 22-8 AWG 22-8 AWG Wire stripping 12.5 mm
per clamp Flexible 0.5-6 mm² length 0.49 in
D6/8.P.2L with non insulated ferrule
with insulated ferrule Tool Flat screwdriver
Gauge A5 Ø 5.5 mm
Ø 0.217 in
67 2.64"
Rated cross section 6.0 mm² 8 AWG 8 AWG
Rated short-time withstand current (1s) 720 A
45.5 1.79" 38 1.50" Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
33.3 1.32"
RoHS USR CNR CSA Gost R
8 mm 0.315 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.354 in
1 End stops 9 mm Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 2.5 mm 0.098 in Grey FED8.2L 1SNA291161R2500 20 2.00
3 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
3 Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162063S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
