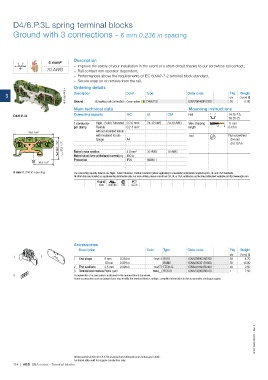

P. 116
D4/6.P.3L spring terminal blocks
Ground with 3 connections - 6 mm 0.236 in spacing
Description
4 mm²
– Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact,
10 AWG – Rail contact non operator dependent,
– Performances above the requirements of IEC 60947-7-2 terminal block standard,
– Secure snap on or remove from the rail.
Ordering details
1SNC162018F0014 Description Color Type Order code Pkg Weight
3 Ground Screwless rail connection Green-yellow D4/6.P.3L 1SNA290409R1200 qty (1 pce) g
50
11.00
Main technical data Mounting instructions
D4/6.P.3L Connecting capacity IEC UL CSA Rail TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 0.2-6 mm² 24-10 AWG 24-10 AWG Wire stripping 11 mm
per clamp Flexible 0.2-4 mm² length 0.43 in
with non insulated ferrule
78.5 3.09"
with insulated ferrule Tool Flat screwdriver
Gauge A4 Ø 4 mm
38.7 1.52" 27.2 1.07" Ø 0.157 in
Rated cross section 4.0 mm² 10 AWG 10 AWG
Rated short-time withstand current (1s) 480 A
Protection IP20 NEMA 1
39.3 1.54"
6 mm 0.236 in spacing The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CNR CSA Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.354 in
1 End stops 9 mm Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 2.5 mm 0.098 in Grey FED6.3L 1SNA291694R2400 20 2.50
3 Terminal block markersBlank card White RC610 1SNA233000R0100 1 7.50
3 Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162061S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
114 | ABB SNA series - Terminal blocks
