Page 120 - 1SNC160019C0203_SNA series - Terminal blocks
P. 120

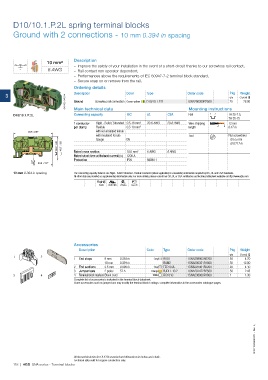

D10/10.1.P.2L spring terminal blocks
Ground with 2 connections - 10 mm 0.394 in spacing
Description
10 mm²
– Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact,
6 AWG – Rail contact non operator dependent,
– Performances above the requirements of IEC 60947-7-2 terminal block standard,
– Secure snap on or remove from the rail.
Ordering details
Weight
1SNC162104F0014 Ground Screwless rail connection Green-yellow D10/10.1.P.2L 1SNA290309R2500 25 28.00
3 Description Color Type Order code Pkg (1 pce) g
qty
Rail
TH 35-7.5,
Connecting capacity
D10/10.1.P.2L Main technical data IEC UL CSA Mounting instructions
TH 35-15
1 conductor Rigid - Solid / Stranded 0.5-16 mm² 20-6 AWG 20-6 AWG Wire stripping 12 mm
per clamp Flexible 0.5-10 mm² length 0.47 in
77.5 3.05" with non insulated ferrule
with insulated ferrule Tool Flat screwdriver
Gauge B6 Ø 5.5 mm
50.2 1.98" 42.7 1.68" Ø 0.217 in
Rated cross section 10.0 mm² 6 AWG 6 AWG
Rated short-time withstand current (1s) 1200 A
Protection IP20 NEMA 1
43.6 1.72"
10 mm 0.394 in spacing The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
CUS
RoHS USR CNR cCSAus Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.354 in
1 End stops 9 mm Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 2.5 mm 0.098 in Grey FED10.2L 1SNA291461R2200 20 4.10
3 Jumper bars 2 poles 57 A Orange BJDL1.10.2 1SNA291472R2500 50 2.45
3 4 4 Terminal block markersBlank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162066S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
118 | ABB SNA series - Terminal blocks
