Page 125 - 1SNC160019C0203_SNA series - Terminal blocks
P. 125

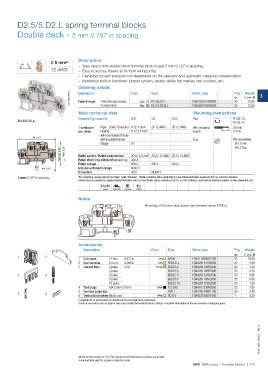

D2.5/5.D2.L spring terminal blocks
Double deck - 5 mm 0.197 in spacing
Description
2.5 mm²
– Save space with double deck terminal block in just 5 mm 0.197 in spacing,
12 AWG – Easy to access thanks to its front wiring entry,
– Clamping contact pressure non dependent on the operator and automatic creeping compensation,
– Numerous built-in functions: jumper system, clearly visible top marker, test sockets, etc.
Ordering details
1SNC162015F0014 Description 2 feed-through circuits, Color Grey Type Order code Pkg (1 pce) g 3
Weight
qty
Feed-through
1SNA290161R0000
D2.5/5.D2.L
50
13.00
4 connections
Mounting instructions
Main technical data Blue D2.5/5.D2.N.L 1SNA290163R0200 50 13.00
Connecting capacity IEC UL CSA Rail TH 35-7.5,
D2.5/5.D2.L TH 35-15
1 conductor Rigid - Solid / Stranded 0.12-4 mm² 26-12 AWG 26-12 AWG Wire stripping 9.5 mm
per clamp Flexible 0.12-2.5 mm² length 0.37 in
with non insulated ferrule
95 3.74"
with insulated ferrule Tool Flat screwdriver
Gauge A2 Ø 3.5 mm
Ø 0.138 in
64 2.52" 56.5 2.22"
Rated current / Rated cross section
300 A
Rated short-time withstand current (1s) 20 A / 2.5 mm² 20 A / 12 AWG 20 A / 12 AWG
Rated voltage 500 V 300 V 300 V
49 1.93" Impulse withstand voltage 6000 V
Protection IP20 NEMA 1
5 mm 0.197 in spacing The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
CUS
RoHS USR CNR cCSAus Gost R
Notes
Mounting of the inner deck jumper bar between decks (ITVE.L).
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.472 in
1 End stops 12 mm Grey BADH 1SNA116900R2700 50 24.00
2 End sections 2.5 mm 0.098 in Grey FED5.D.L 1SNA291441R2600 20 4.20
3 Jumper bars 2 poles 24 A Orange BJDL5-2 1SNA291102R2300 50 1.00
3 poles BJDL5-3 1SNA291103R2400 50 0.70
3 4 4 poles BJDL5-4 1SNA291104R2500 50 0.80
5 poles BJDL5-5 1SNA291105R2600 20 0.90
10 poles BJDL5-10 1SNA291110R2600 20 1.20
4 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
5 Inner deck jumper bars ITVE.L 1SNA291349R1100 50 0.40
5 6
6 Terminal block markersBlank card White RC510 1SNA231000R0700 1 5.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162017S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 123
Double deck - 5 mm 0.197 in spacing
Description
2.5 mm²
– Save space with double deck terminal block in just 5 mm 0.197 in spacing,
12 AWG – Easy to access thanks to its front wiring entry,
– Clamping contact pressure non dependent on the operator and automatic creeping compensation,
– Numerous built-in functions: jumper system, clearly visible top marker, test sockets, etc.
Ordering details
1SNC162015F0014 Description 2 feed-through circuits, Color Grey Type Order code Pkg (1 pce) g 3
Weight
qty
Feed-through
1SNA290161R0000
D2.5/5.D2.L
50
13.00
4 connections
Mounting instructions
Main technical data Blue D2.5/5.D2.N.L 1SNA290163R0200 50 13.00
Connecting capacity IEC UL CSA Rail TH 35-7.5,
D2.5/5.D2.L TH 35-15
1 conductor Rigid - Solid / Stranded 0.12-4 mm² 26-12 AWG 26-12 AWG Wire stripping 9.5 mm
per clamp Flexible 0.12-2.5 mm² length 0.37 in
with non insulated ferrule
95 3.74"
with insulated ferrule Tool Flat screwdriver
Gauge A2 Ø 3.5 mm
Ø 0.138 in
64 2.52" 56.5 2.22"
Rated current / Rated cross section
300 A
Rated short-time withstand current (1s) 20 A / 2.5 mm² 20 A / 12 AWG 20 A / 12 AWG
Rated voltage 500 V 300 V 300 V
49 1.93" Impulse withstand voltage 6000 V
Protection IP20 NEMA 1
5 mm 0.197 in spacing The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
CUS
RoHS USR CNR cCSAus Gost R
Notes
Mounting of the inner deck jumper bar between decks (ITVE.L).
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.472 in
1 End stops 12 mm Grey BADH 1SNA116900R2700 50 24.00
2 End sections 2.5 mm 0.098 in Grey FED5.D.L 1SNA291441R2600 20 4.20
3 Jumper bars 2 poles 24 A Orange BJDL5-2 1SNA291102R2300 50 1.00
3 poles BJDL5-3 1SNA291103R2400 50 0.70
3 4 4 poles BJDL5-4 1SNA291104R2500 50 0.80
5 poles BJDL5-5 1SNA291105R2600 20 0.90
10 poles BJDL5-10 1SNA291110R2600 20 1.20
4 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
5 Inner deck jumper bars ITVE.L 1SNA291349R1100 50 0.40
5 6
6 Terminal block markersBlank card White RC510 1SNA231000R0700 1 5.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162017S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 123
